Up convert LO reject Mixer used in RF transceiver applications

RFUD01C (UPC Mixer) is LO reject Mixer used in RF transceiver applications.

Contact Provider Request Datasheet

Overview

RFUD01C (UPC Mixer) is LO reject Mixer used in RF transceiver applications. The process used to design UPC Mixer is 0.1um GaAs pHEMT. This is singly balanced resistive Mixer. The IF+ and IF ports are connected to an off-chip IF Balun. The LO is applied to a balun to generate the required 180 phase shift at the transistor gates. DC bias gate is applied to gate of resistive mixer which improves LO rejection, IIP3 and CG as well. Results are shown in datasheet with all parasitics & coupling effects at desired frequency

Key features

  • RF Frequency: 24-30 GHz
  • IF Frequency: 2-6 GHz
  • LO Frequency: 26-36 GHz
  • Conversion Loss of 8 dB over 24 to 30 GHz Bandwidth
  • IIP3 of +15 dBm with min LO power
  • Die size: 1.15 mm x 2.15 mm

Block Diagram

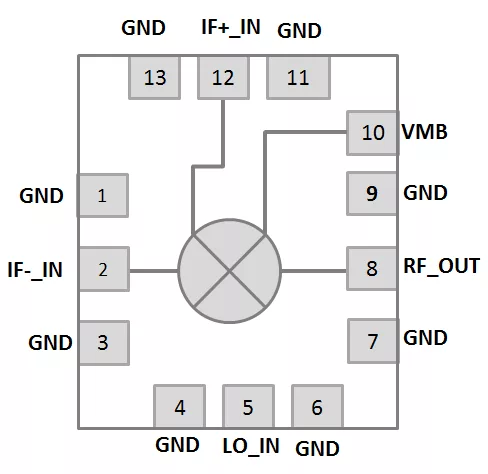

RFUD01C block diagram

Benefits

  • Good conversion loss
  • Min LO power
  • Low cost
  • Porting: IP can be ported to 65nm Si / CMOS node

Applications

  • 5G mobile system
  • Satellite Communication
  • Point to point communication system
  • Radar

What’s Included?

  • Schematic and Net List
  • Abstract Model (.lib file)
  • Layout View (Optional)
  • Behavioral Model (Circuit & EM Simulation)
  • Extracted View (Optional)
  • GDSII
  • DRC, LVS, Antenna report
  • Test bench with saved configuration (Optional)
  • Documentation
