Vendor: AionChip Technologies Category: Multi-Protocol PHY

Ultra-Low Latency 32Gbps SerDes IP in TSMC 12nm FFC

As real-time workloads—from high-frequency trading to low-latency AI and edge analytics—push system responsiveness to the limit, …

Contact Provider Request Datasheet
TSMC 12nm FFC View all specifications

Overview

As real-time workloads—from high-frequency trading to low-latency AI and edge analytics—push system responsiveness to the limit, every nanosecond counts. AionChip’s Argos Ultra-Low Latency SerDes IP delivers ultra-fast signaling with industry-leading performance for the most demanding, mission-critical applications (achieving < 400ps round trip latency at 10Gbps with 2-bit low-latency mode).

Built on a proven high-speed SerDes architecture, Argos achieves the optimal balance of latency, power, and area efficiency without compromising signal integrity or performance. Its flexible multi-rate design, supporting data rates from 1.25Gbps to 32Gbps, ensures backward compatibility and seamless deployment across real-time computing platforms, HPC clusters, and next-generation low-latency networks.

Key features

  • Modular architecture supporting x1 to x16 lanes with a single CMU
  • Lane-based PLL architecture supporting flexible, independent data rates from 1.25 to 32Gbps
  • Ultra-low latency 2/4/8-bit parallel interface mode for lowest possible latency
  • Broad protocol compatibility including PCIe Gen1–5, Ethernet (1G/10G/25G/50G/100G), JESD204B/C, CPRI, and many other high-speed serial standards
  • Adaptive RX EQ combining CTLE + 10-Tap DFE
  • Programmable 4-Tap TX FFE with output swing control
  • Non-intrusive Eye monitor for real-time signal quality observation
  • Comprehensive loopback modes: TX-to-RX, RX- to-TX, Line-side and System-side
  • Low-Power Standby State support for energy- efficient operation
  • Built-in test and debug features including PRBS Generators and Checkers, AC-JTAG (1149.6), analog debug port

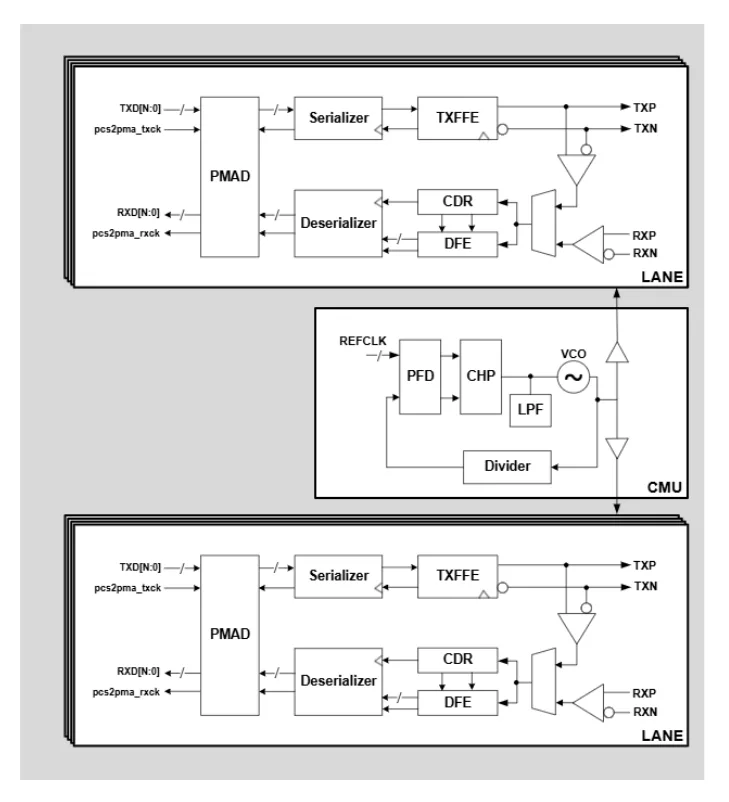

Block Diagram

Ultra-Low Latency 32Gbps SerDes IP in TSMC 12nm FFC block diagram

Applications

  • Networking
  • Datacenter
  • AI Acceleration / HPC
  • Industrial, Automation / Robotics
  • Storage
  • Financial High Frequency Trading

What’s Included?

  • Standard integration views: LEF abstract view, .LIB timing view, Verilog model, DRC, LVS, ANT reports, and GDSII
  • Synthesizable soft RTL with SDC and synthesis script
  • Documentations: Datasheet, Integration guide, and Programming guide

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC —

Specifications

Identity

Part Number
Ultra-Low Latency 32Gbps SerDes IP in TSMC 12nm FFC
Vendor
AionChip Technologies
Type
Silicon IP

Provider

AionChip Technologies
HQ: Taiwan R.O.C.
AionChip specializes in cutting-edge high-speed connectivity technologies, crucial for the AI era’s advanced computing needs. Our innovations deliver breakthrough data connectivity performance essential for the advancement of high performance computing, deep learning, and cloud data center efficiency.
