The agileTSENSE_A GP Temperature Sensor is a traditional ΔVBE temperature sensor that amplifies the difference between two VBE vo…
Overview
The agileTSENSE_A GP Temperature Sensor is a traditional ΔVBE temperature sensor that amplifies the difference between two VBE voltages, and converts the result to a single-ended signal. This temperature sensor can be used with the agileADC in order to provide a digital output with an overall relative accuracy of +/-0.25°C. On modern SoCs, thermal management is critical for detection of security attacks and optimization of power, performance and area.
Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.
Key features
- Measurement Range: -20°C to +100°C
- Accuracy (Uncalibrated) +/-5°C
- Accuracy (Calibrated):
- -20°C to +100°C = +/-2°C
- 0°C to +50°C = +/-0.25°C
- Start-up Time: Typ 20us
- Current Consumption: Typ 25uA
- Operational Temperature Range: -40°C to 125°C
- Customizable design for simple SoC integration
Block Diagram

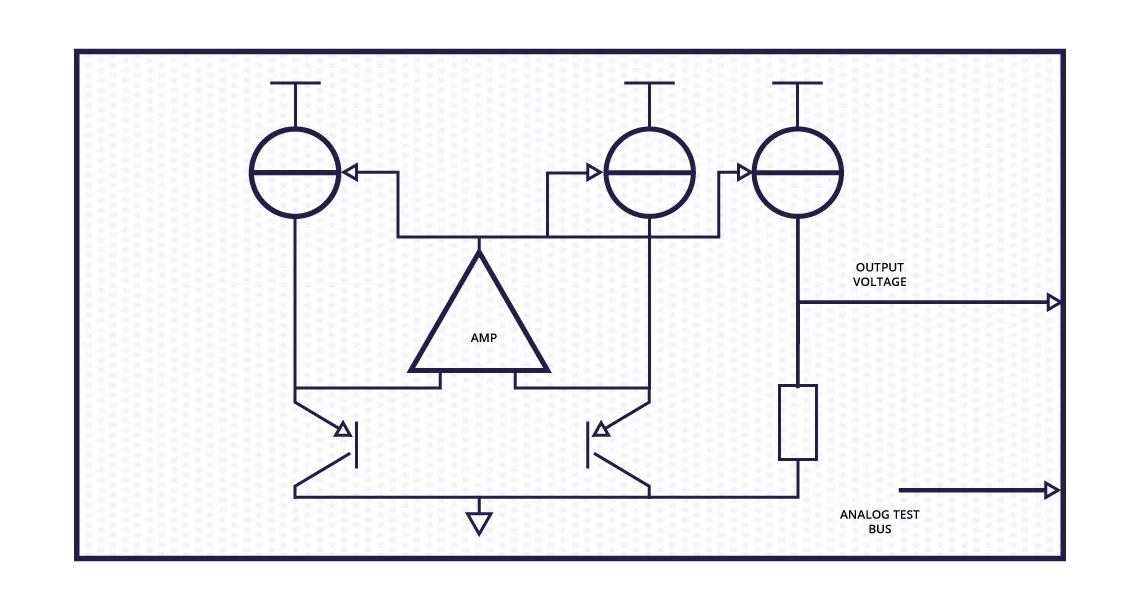

agileTSENSE_A block diagram
Benefits
- DFT/DFM
- - Built-in 5-bit voltage trim to facilitate process and/or manufacturing offsets to be adjusted
- - Analog test bus to aid DFT/DFM test
Applications
- IoT, Security, Automotive, AI, SoCs, ASICs
What’s Included?
- Datasheet
- Testing and Integration Guide
- Verilog Models
- Floorplan (LEF)
- Timing models (LIB)
- Netlist (CDL)
- Layout (GDS)
- Physical Verification Report
- Design Report
