Synchronous Ethernet (SyncE) ESMC and Enhanced ESMC core

NetTimeLogic’s Synchronous Ethernet (SyncE) Node is a full hardware (FPGA) only implementation of an ESMC frame Handler and State…

Contact Provider Request Datasheet

Overview

NetTimeLogic’s Synchronous Ethernet (SyncE) Node is a full hardware (FPGA) only implementation of an ESMC frame Handler and State selector. The whole ESMC frame sending and receiving & decoding as well as State selection according to the selected option mode are implemented in the core, no CPU is required. This allows running SyncE synchronization completely independent and standalone from the user application. The core can be configured either by signals or by an AXI4Lite-Slave Register interface.

All calculations and corrections are implemented completely in HW.

Key features

  • Synchronous Ethernet (SyncE) Node
  • Supports ESMC and Enhanced ESMC Message according to ITU-T G8264
  • Automatic selection of State according to SSM codes for SyncE option 1 or 2 networks and QL values as defined in ITU-T G.781
  • Manual State override mode
  • AXI4Lite register set or static configuration
  • Clock Mux Module
  • PPS Generator Module
  • Tx Clock Generator Module

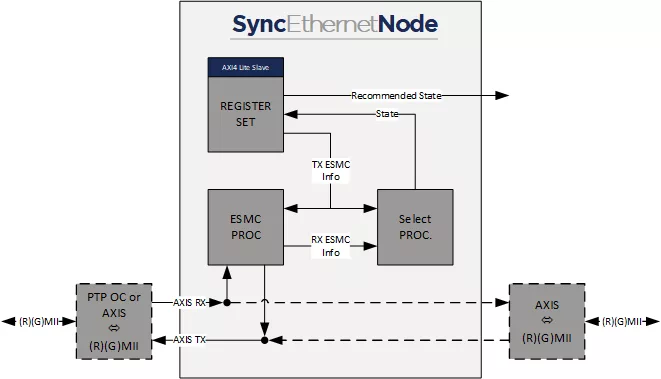

Block Diagram

NTL_SYNCE_NODE block diagram

Benefits

  • Coprocessor ESMC and Enhanced ESMC frame handling and state selection completely standalone in the core.
  • No Software Stack required

Applications

  • Telecom Networks
  • High Accuracy Synchronization Networks

What’s Included?

  • Source Code (not encrypted, not obfuscated)
  • Reference Designs
  • Testbench with Stimulifiles
  • Configuration Tool
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
NTL_SYNCE_NODE
Vendor
NetTimeLogic GmbH

Provider

NetTimeLogic GmbH
HQ: Switzerland
NetTimeLogic offers full time synchronization, network redundancy, and time sensitive networking solutions as vendor independent FPGA IP cores and design services in these fields. We provide full hardware implementations of synchronization IP cores such as PTP-Transparent-, Ordinary-, Grandmaster- or Hybrid-Clocks as well as IRIG-, PPS-, NMEA-Masters and Slaves, a NTP Server and Client and a RTC-Master and a DCF-Slave. For network redundancy we provide a full hardware implementation of the HSR and PRP protocols and for time sensitive networking we provide also a full hardware implementation of TSN suporting all major standards. All IP cores can be combined to a complete synchronization or network redundancy solution which can act e.g. as bridge between the different times synchronization protocols or as a network redundancy solution with time synchronization support. We also offer design services in the field of FPGA and Embedded Software development. With our 20+ years of experience and certification in FPGA and software development as well as product and project management we bring in our expertise to design the best possible solution for you. We understand your needs and can give you support to develop a best in class product. We offer swiss quality engineering - highest quality, always on time!
