syn1588® enabled IEEE 1588 compliant clock synchronisation

The syn1588® Clock_M IP core offers the full syn1588® technology with a suitable number of trigger and IO events supported. The syn1588® Clock_M IP core is suited for direct integration of a MAC and/or a processor on a single chip (SOC/SOPC design). A standard AHB interface (slave) is available for communication to the host processor executing the PTP Stack.

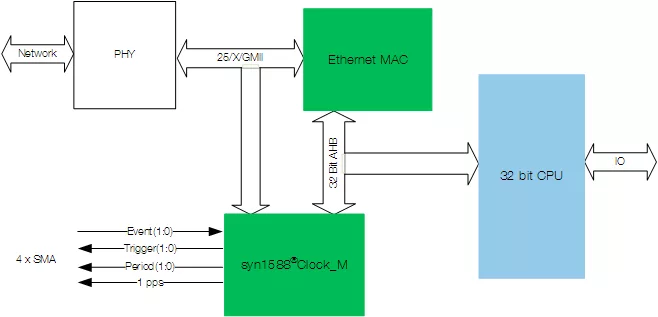

A typical application example is the syn1588® PCIe NIC. A standard PCIe Ethernet network interface card is made up of a single FPGA that includes the syn1588® Clock_M IP core as well as the Ethernet MAC and the PCIe interface

• fully synchronous to the system clock
• all registers of the core operate with the rising clock edge
• well commented, structured VHDL source code
• medium footprint and medium I/O count
• AHB type slave interface for clock control using independent CPU clock domain
• media independent interface (MII or GMII) for IEEE1588 message detection
• optional user-programmable time stamper unit
• Oregano Systems‘ patented on-the-fly time-stamping (1-step operation)
• 100/1000 Mbit/s Ethernet interface supported
• 10 Gbit/s Ethernet interface (XGMII)
• New! 25 Gbit/s Ethernet interface (25GMII) available upon request
• two timestamp input signals (EVENT function). One EVENT input offers FIFO to capture dense events. This can be used to synchronize to an external GPS-based time source via a 1 PPS signal. Minimum pulse width is 3 x syn1588® clock period.
• Generation of two a-periodic, one-time events (TRIGGER function). One TRIGGER output offers FIFO to generate dense events. TRIGGERs may be used to start the PERIOD function to allow a precise absolute phase definition in the whole PTP network
• two PERIOD outputs allowing generation of periodical signals (clocks) in a frequency range from mHZ to MHz with a resolution of 2-45 ns
• one 1 pulse per second (PPS) output
• generation of digital IRIG-B output stream (DCLS mode IRIG-B000)
• decoding of digital IRIG-B input stream (DCLS mode IRIG-B000)
• generation of interrupts upon external and internal events
• pipelined adder based clock for best synchronization results
• separate receive and transmit timestamp FIFOs
• clock time format compatible to the IEEE1588 standard
• suited for FPGA as well as ASIC implementations
• optional SMPTE 2059 compatible signal generation
