Pulse Per Second (PPS) Clock to PPS core

NetTimeLogic’s PPS Clock to PPS core is a full hardware (FPGA) only implementation of a PPS generator out of a clock of configura…

Contact Provider Request Datasheet

Overview

NetTimeLogic’s PPS Clock to PPS core is a full hardware (FPGA) only implementation of a PPS generator out of a clock of configurable frequency, it is intended to be connected to a PPS Slave core able to syntonize to a Pulse per Second. The core also checks if the input clock is in the configured range and only if so will generate a PPS. The core can be configured either by signals or by an AXI4Lite-Slave Register interface.

This core is intended to be used with either external clocks or also SyncE clocks when the frequency shall be adjusted numerically rather than a clock switch.

Key features

  • Configurable input frequency from 100Hz to 100MHz
  • Input frequency supervision
  • PPS duty cycle configurable in ms steps
  • PPS Generation runs directly on Input Clock (minimal Jitter)
  • AXI4Lite register set or static configuration

Block Diagram

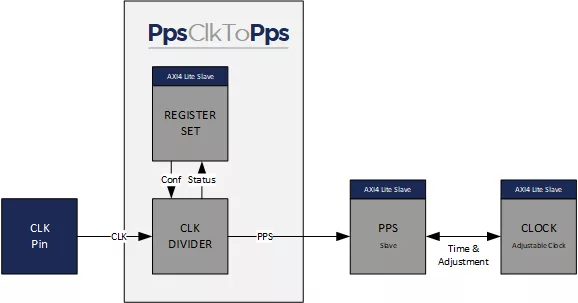

NTL_PPS_CLK_TO_PPS block diagram

Benefits

  • Coprocessor handling PPS generation standalone in the core.
  • Wide frequency input and runtime configurable.
  • Allows to have a syntonized clock even if the input clock is gone
  • Simple interface

Applications

  • Legacy Networks
  • Time converters
  • Robot control
  • Distributed data acquisition
  • Test and measurement

What’s Included?

  • Source Code (not encrypted, not obfuscated)
  • Reference Designs
  • Testbench with Stimulifiles
  • Configuration Tool
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
