Special Purpose Low offset Operational Amplifier
The WEAOPSLOSP18NI18RO12M22G is a special purpose low offset buffer for bias generator that provides a buffered output for the ba…
Overview
The WEAOPSLOSP18NI18RO12M22G is a special purpose low offset buffer for bias generator that provides a buffered output for the bandgap voltage.The OpAmp deliberately exhibits systematic offsets to favor near zero Output Voltages. It is Ideal for Power Detector and Temperature sensors with Rail – To – Rail Output that can go down to zero values.
Key features
- Power Supply : 1.8 V
- Open loop gain : 95 dB
- PSRR : 77 dB@ 1 KHz
- 33 dB@ 1 MHz
- Noise @100 KHz : -166 dBV/sqrt (Hz)
- 5 nV/sqrt (Hz)
- Noise @1 MHz : -169 dBV/sqrt (Hz)
- 3.47 nV/sqrt (Hz)
- Offset :62 uV
- Bandwidth : 807 Hz
- Output impedance : 28 KOhm
- Power Consumption : 1.58 mW
- Slew rate : 22.8 V/us
- Distortion SFDR @1 MHz
- (Vin 500m Vp-p): -84 dB
- Area : 95 um x 63 um
- Process : 22FDX
- Metal Option : 19

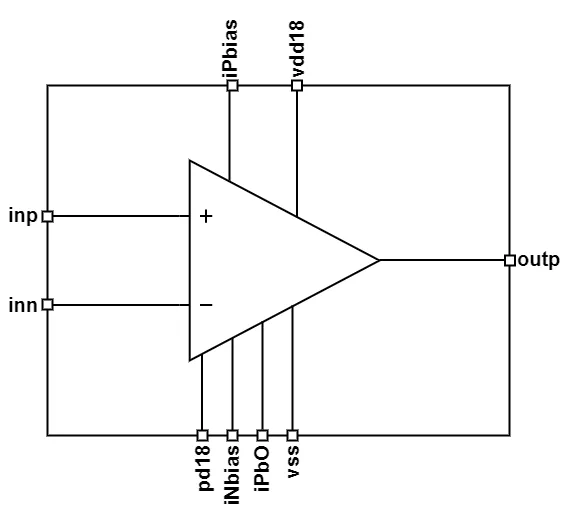

Block Diagram
WEAOPSLOSP18NI18RO12M22G block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEAOPSLOSP18NI18RO12M22G
Vendor
Weasic Microelectronics
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
