This Cadence® Verification IP (VIP) provides support for the TileLink specification.
Overview
This Cadence® Verification IP (VIP) provides support for the TileLink specification. It provides a highly capable compliance verification solution simulation, making it applicable to intellectual property (IP), system-on-chip (SoC), and system-level verification. The VIP for TileLink runs on all leading simulators. It supports user interfaces in SV-UVM, plain SV, and C. The VIP includes a bus functional model (BFM) with automatic protocol checkers, supports random stimuli, and collects functional coverage. Cadence provides an integrated solution for interconnect verification that supports the verification of coherent interconnect and performance analysis that provides automated generation of testbenches. The VIP provides a framework for system-level coherency, integrated automatic protocol checks and coverage model.
The TileLink protocol is a standard of the RISC-V Foundation® designed for RISC-V processors. TileLink is a chip-scale interconnect standard providing multiple managers with coherent memory-mapped access to memory and other subordinate devices. TileLink is designed for use in a SoC to connect general-purpose multiprocessors, co-processors, accelerators, DMA engines, and simple or complex devices, using a fast-scalable interconnect providing both low-latency and high-throughput transfers.
Supported specification: TileLink specification versions 1.7.1 and 1.8.
Key features
- Channels
- Drive, sample, and check the signals and operations on channels A and D for TL-UL/TL-UH conformance level and on channels A, B, C, D and E for TL-C conformance level
- TL-UL
- Support for TL-UL conformance level including Flow Control Rules, Deadlock Freedom, Request-Response message ordering, Errors and Byte lanes
- TL-UH
- Support for TL-UH conformance level including Burst Messages and Atomic Operations
- TL-C
- Support for TL-C conformance level, including support for coherent caches
- Operations and Messages
- Support all Operations and Messages
- Automatic Responses
- Support for Automatic Responses by the responder to respond correctly to Write and Read operation initiated by the initiator agent. No user intervention is needed, though user can always override the default legal behavior
- Bus Errors
- Drive, sample, and check the denied and corrupt signals
Block Diagram

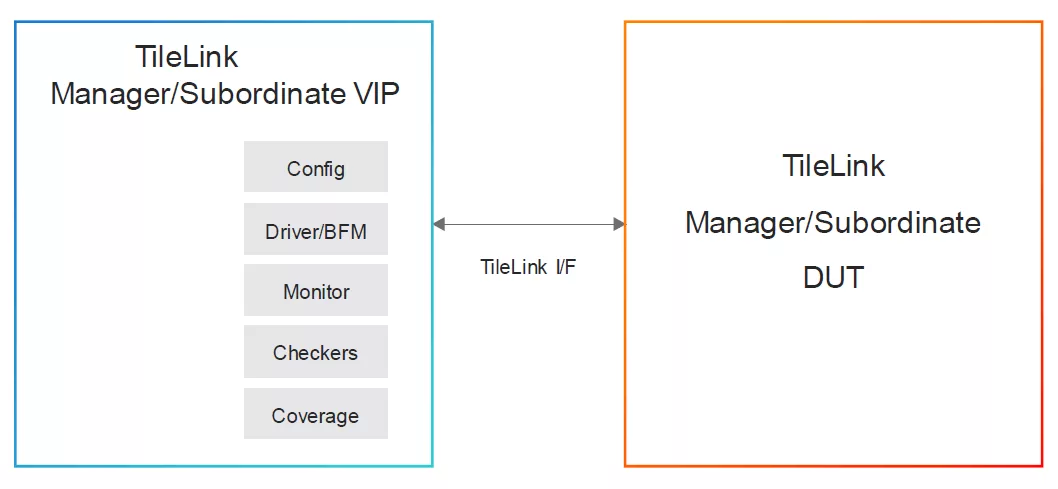

Simulation VIP for TileLink block diagram
