Vendor: Cadence Design Systems, Inc. Category: PCI Express

Simulation VIP for PIPE PHY

The Cadence® PIPE PHY Verification IP (VIP) provides a mature, capable verification solution for the PHY layer of complex protoco…

Contact Provider Request Datasheet

Overview

The Cadence® PIPE PHY Verification IP (VIP) provides a mature, highly capable verification solution for the PHY layer of complex protocols such as PCIe 3/4/5, USB-3.x, USB-4, DisplayPort and SATA at the Intel PIPE (PHY Interface for PCI Express*, SAA, USB-3, DisplayPort, and Converged IO Architectures). The VIP supports simulation platform and enables metric-driven verification of IP and System on Chip (SoC) designs against PIPE PHY protocol specifications. PIPE PHY VIP is compatible with the industry-standard Universal Verification Methodology (UVM) and supports all leading simulators.

Supported Specifications: Intel PIPE version 4.3, 4.4,1 and 5.2 specifications.

Key features

  • Device Type
    • PipeXceiver
    • SerialXceiver
    • PHYDUT Monitor
    • PHY Active VIP
  • PHY Architecture
    • Original PIPE architecture
    • SerDes Architecture
  • Pin Interface
    • Legacy Pin Interface
    • Low Pin Count Interface
  • Protocols Mode
    • USB 3.x
    • PCIe 3/4/5
    • USB4
  • Data Transmission Rate
    • USB 3.x: 5GT/s, 10GT/s
    • USB4: 10 GT/s. 20 GT/s, 10.3125 GT/s, 20.625 GT/s
    • PCIe: 2.5 GT/s, 5.0 GT/s, 8.0 GT/s, 16.0 GT/s,32.0 GT/s
  • Clock Support
    • External Bit Clock
    • Internal Bit Clock (Recovery from Serial bit stream)
  • PCLK Modes
    • PCLK as PHY Input
    • PCLK as PHY Output
    • PCLK as both
  • LFPS
    • Supported
  • PIPE Data Width
    • 8/10, 16/20, 32/40 and 64/80 bit
  • Message Bus
    • M2P and P2M Transactions supported
    • All Message bus commands supported
    • Write Uncommitted
    • Write Committed
    • Read
    • Read Completion
    • Write ACK
  • Integrated Mode with Protocol VIP
    • USB3 , USB4, including Pipe
    • Phy Integrated Mode, is supported

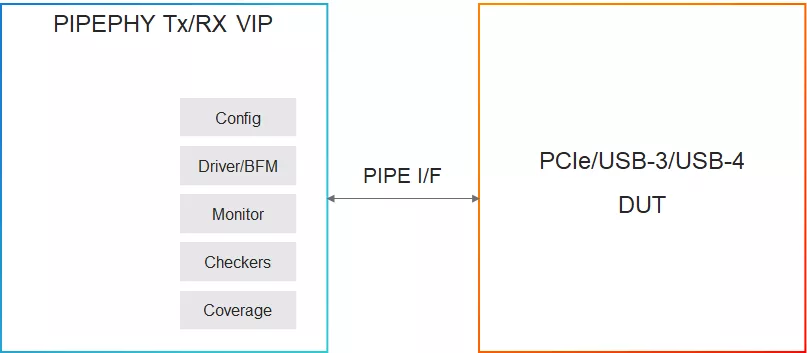

Block Diagram

Simulation VIP for PIPE PHY block diagram
