PCIe Gen 7 Verification IP

The PCIe Gen 7 Verification IP provides an effective & efficient way to verify the components interfacing with PCIe Gen 7 interface of an IP or SoC. The PCIe Gen 7 VIP is fully compliant with latest PCI Express Gen 7 specifications. This VIP is a light weight with an easy plug-and-play interface so that there is no hit on the design cycle time.

• Compliant with PCI Express Specifications 7.09*(128GT/s), 6.3 (64GT/s), 5.0 (32GT/s),4.0 (16GT/s), 3.1 (8GT/s), 2.0 (5GT/s) and 1.1 (2.5GT/s).
• Support for 128.0 GT/s Data Rate per lane with backwards compatible.
• Support for PAM4 Signalling and Gray Coding.
• Support for both Flit Mode & Non-Flit Mode.
• Support for TS0 ordered set (Equalization at 64GT/S and 128GT/s).
• Support for Precoding at 32GT/s ,64GT/s and 128GT/s.
• Support for New Power Management state L0p.
• Configurable Link Width: x1, x2, x4, x8, x16 (x12 and x32 in Non-flit Mode)
• Supports Low Power management LTSSM states - L1, L2, L1 sub states, PCI- PM, ASPM.
• Compliant with latest PIPE Specification 7.0
• Supports SerDes PIPE Architecture as well as Original PIPE Architecture.
• Supports Low Pin Count Interface as well as Legacy PIPE Interface.
• Configurable PIPE width support:
  • Original PIPE Arch. - 8, 16, 32, 64
  • SerDes PIPE Arch. - 10, 20, 40, 80,160
• Support for Shared Flow Control Mechanism.
• Supports 14-bit Tag as requester as well as completer.
• Supports Non-Posted Deferrable Memory Writes.
• Advanced Error Reporting (AER) with optional Malformed TLP checks, ECRC and TLP Poisoning support.
• Support for optional extended capabilities such as:
  • Flit Error Injection Extended Capability
  • VF Resizable Bar Extended Capability
  • Data Object Exchange Extended Capability
• Supports simplified replay timer and SR-IOV
• Supports DOE and IDE
• Support for ATS with latest ATS Specification v1.1
• Supports LTR & FLR (Function Level Reset).
• Support for SSC and Jitter in clock.
• Support for Common RefClk and Separate RefClk
• Compliance testing in TL, DLL & PL including power management test-suites.
• Support for Flit Logging Ext ended Capability.
• On the fly protocol checking using protocol check functions, static and dynamic assertion.
• Built in Coverage analysis.
• Provides a comprehensive user API (call backs).

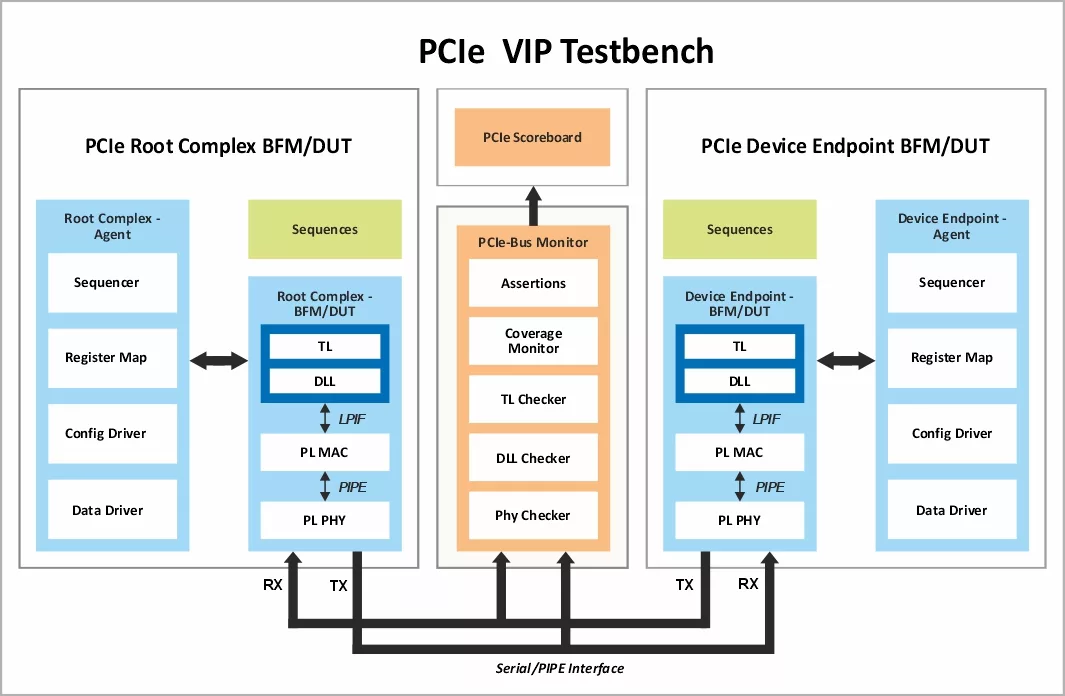

• Verification IP configurable as PCI express Root Complex, Device Endpoint or PCIe Switch.
• Support for Block Level Verification.
• Graphical analyser for all three Layers to show PCIe transactions for easy debugging.

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environments.

• PCIe Gen 7 Root-Complex/Device-Endpoint
• PCIe Gen 7 BFM/Agents for :
  • PHY Layer
  • Data Link Layer
  • Transaction Layer
  • Register Space
• PCIe Gen 7 Layered Monitor and Scoreboard
• Test Environment & Test Suite :
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
  • Compliance Tests
• Integration Guide, User Manual and Release Notes
