Simulation VIP for MIPI DBI

Incorporating the latest protocol updates, the mature and comprehensive Cadence® Verification IP (VIP) for MIPI® DBI-2sm Protocol…

Contact Provider Request Datasheet

Overview

Incorporating the latest protocol updates, the mature and comprehensive Cadence® Verification IP (VIP) for MIPI® DBI-2sm Protocols provides a complete bus functional model (BFM), and integrated automatic protocol checks. DBI VIP is used with DSI VIP. Designed for easy integration in testbenches at IP, system-on-chip (SoC), and system levels, the VIP for DBI helps you reduce time to test, accelerate verification closure, and ensure end-product quality. Our VIP for DBI runs on all major simulators and supports SystemVerilog verification language along with associated methodologies, including the Universal Verification Methodology (UVM) and Open Verification Methodology (OVM).

Supported specification: MIPI DBI v2.0.

Key features

  • Configuration/Data
    • Supports protocol checks of signal timings
  • Data
    • Supports a variety of callbacks for better control and monitor functions
  • PHY Interfaces
    • Type A configuration (8,9,16 bits of data bus width)
    • Type B configuration (8,9,16 bits of data bus width)
    • Type C option
  • Physical Layer
    • Supports all signals timing per interface configuration
  • Transmitter and Receiver
    • Drives or monitors all commands from the Display Command Set (DCS)

Block Diagram

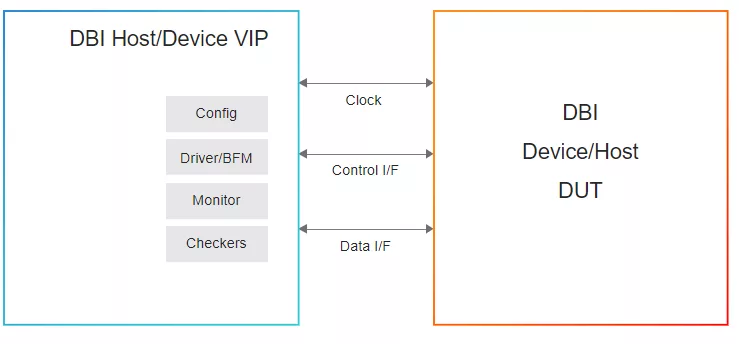

Simulation VIP for MIPI DBI block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Simulation VIP for MIPI DBI
Vendor
Cadence Design Systems, Inc.

Provider

Cadence Design Systems, Inc.
HQ: USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem. Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster. The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements. Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
