MIPI DSI Verification IP

MIPI DSI Verification IP provides an smart way to verify the MIPI DSI bi-directional two-wire bus.

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

MIPI DSI Verification IP provides an smart way to verify the MIPI DSI bi-directional two-wire bus. The SmartDV's MIPI DSI Verification IP is fully compliant with version 1.3.1 MIPI Alliance specification for serial Interface and provides the following features.

MIPI DSI Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

MIPI DSI Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Full MIPI DSI Transmitter and Receiver functionality.
  • Supports 1.3.1 MIPI DSI/2.0 MIPI DSI-2 Specifications.
  • Supports PPI interface.
  • Operates as a Transmitter, Receiver, or both.
  • Supports all types of DPHY short packets
  • Supports all types of DPHY long packets
  • Supports all types of CPHY short packets
  • Supports all types of CPHY long packets
  • Supports all lane configuration
  • Supports 8 lane configuration of DPHY layer
  • Supports 4 lane configuration of CPHY layer
  • Supports multiple packets per transmission
  • Supports differential and single ended mode of operation
  • Supports sync event payloads
  • Supports Display Stream Compression (DSC)
  • Supports 2.0 MIPI DSI-2 Specification
  • Support both DPHY and CPHY
  • Full MIPI DSI-2 Tx and Rx functionality
  • Supports MIPI DBI specification
  • Supports MIPI DCS specification
  • Supports all BTA commands
  • Supports Link Distribution Function
  • Supports skew calibration
  • Supports data scrambling
  • Supports below data rates in DPHY layer
    • 80 to 1500 Mbps per lane without deskew calibration
    • Upto 2500Mbps per lane with deskew calibration
    • Upto 12000Mbps per lane with equalization
  • Supports below data rates in CPHY layer
    • 17.1 Gbps for 3 lanes
    • 5.7 Gbps for 1 lane
  • Supports detection of all timeouts and injection of various timeout errors
  • Supports both high speed and low power packet transmission and reception
  • Supports fine grain control of timing parameters
  • Various kind of Transmitter and Receiver errors generation and detection
    • SoT error
    • Sync error
    • Word count error
    • Sync length error
    • Checksum error
    • ECC error
  • Status counters for various events in bus.
  • Operates as a Transmitter, Receiver, or both
  • Monitor, Detects and notifies the test bench of all protocol and timing errors.
  • Callbacks in node transmitter, receiver and monitor for user processing of data.
  • MIPI DSI/MIPI DSI-2 Verification IP comes with complete test suite to test every feature of MIPI DSI/MIPI DSI-2 specification.
  • Functional coverage for complete MIPI DSI/MIPI DSI-2 features

Block Diagram

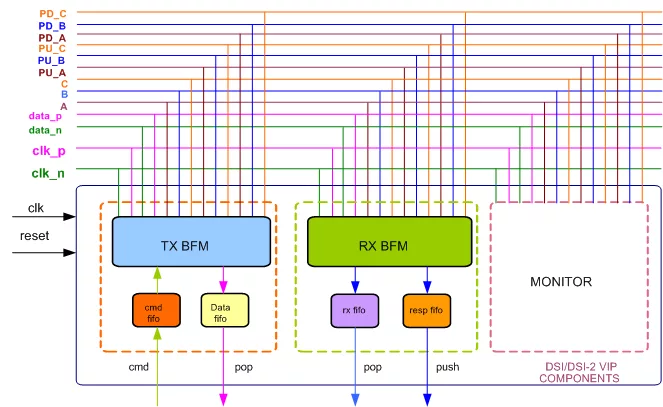

MIPI DSI VIP block diagram

Benefits

  • Faster testbench development and more complete verification of MIPI DSI designs.
  • Easy to use command interface simplifies testbench control and configuration of Tx,Rx and monitor
  • Simplifies results analysis.
  • Runs in every major simulation environment.

What’s Included?

  • Complete regression suite containing all the MIPI DSI testcases.
  • Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
