Vendor: Synopsys, Inc. Category: Key Storage

Secure Storage Solution for OTP IP

The Synopsys Secure Storage Solution for OTP is an add-on to Synopsys One-Time Programmable (OTP) Non-Volatile Memory (NVM) IP.

Contact Provider Request Datasheet

Overview

The Synopsys Secure Storage Solution for OTP is an add-on to Synopsys One-Time Programmable (OTP) Non-Volatile Memory (NVM) IP. It addresses the need for secure storage of sensitive information in embedded NVM SoCs across markets such as AI, HPC, IoT, Automotive, and Aerospace & Defense. By combining Synopsys OTP NVM IP, Synopsys SRAM PUF technology, and an industry-standard cryptographic engine, it delivers robust, hardware-based security for sensitive data, code, and keys. The SRAM PUF generates a device-specific root key at power-up, which is never stored on-chip and is used to derive keys for encrypting data stored in the OTP and scrambling addresses. This layered defense provides strong protection against attacks, keeping critical secrets secure—even if hardware is accessed directly.

The Synopsys Secure Storage Solution for OTP integrates seamlessly into SoC designs, offering flexible configuration, system-level security, and automated provisioning. It supports functions such as secure storage of keys, data, and code; ROM patching; device identification; anti-counterfeiting; and anti-rollback protection.

Key features

  • OTP and Encryption Security: Address scrambling and AES encryption with SRAM PUF keys deliver secure storage for sensitive data in OTP.
  • System-Level Security Extension: Optional add-on allows SRAM PUF sharing with OTP, safeguarding chip-level assets and enabling advanced key management and secure ID generation.
  • Flexibility and Scalability: Configure secure regions within OTP to tailor protection levels, meeting diverse design requirements.
  • Easy Integration: Standard APB interface ensures quick, seamless incorporation into various SoC architectures for faster development.
  • Simple Software API: Internal management of security operations requires only basic read/write commands, eliminating the need for complex drivers or libraries.
  • Automatic Provisioning and Initialization: Key generation and security features are automatically initialized at power-up or reset, reducing manual intervention and deployment risk.
  • Short Time-to-Market: Fully integrated, out-of-the-box solution cuts development and integration time, enabling rapid implementation of secure SoC designs.

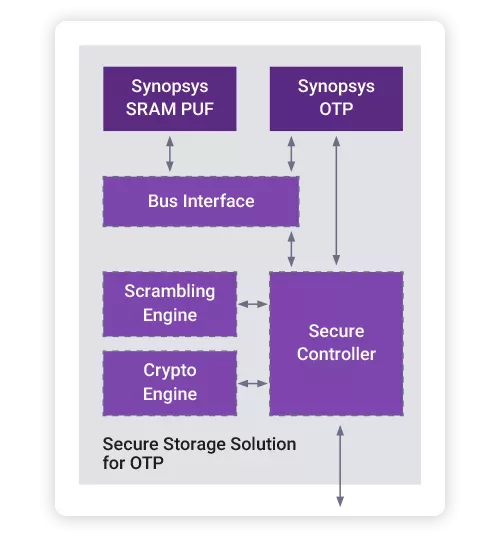

Block Diagram

dwc_nvm_secure_otp_add_on block diagram

Benefits

  • Advanced Security: Encrypted storage in OTP using dynamic root key from SRAM PUF
  • System-Level Security Extension: Add-on allows sharing the SRAM PUF to protect chip-level assets
  • Flexible Security Configuration: Secure regions within OTP can be tailored to meet specific needs
  • Accelerated Time-to-Market: Low risk, easy to integrate, out-of-the box solution, low development effort

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
dwc_nvm_secure_otp_add_on
Vendor
Synopsys, Inc.

Provider

Synopsys, Inc.
HQ: USA
Synopsys is a leading provider of high-quality, silicon-proven semiconductor IP solutions for SoC designs. The broad Synopsys IP portfolio includes logic libraries, embedded memories, analog IP, wired and wireless interface IP, security IP, embedded processors and subsystems. To accelerate IP integration, software development, and silicon bring-up, Synopsys’ IP Accelerated initiative provides architecture design expertise, pre-verified and customizable IP subsystems, hardening, and signal/power integrity analysis. Synopsys' extensive investment in IP quality, comprehensive technical support and robust IP development methodology enables designers to reduce integration risk and accelerate time-to-market.
