Vendor: SmartDV Technologies Category: IEEE-1588 / PTP

Microsecond Channel (MSC) Verification IP

The MSC Verification IP is compliant with 2005-01-0057 specification and verifies MSC Bus interfaces.

Contact Provider Request Datasheet

Overview

The MSC Verification IP is compliant with 2005-01-0057 specification and verifies MSC Bus interfaces. It includes an extensive test suite covering most of the possible scenarios. It performs all possible protocol tests in a directed or a highly randomized fashion which adds the possibility to create the widest range of scenarios to verify the DUT effectively.

Microsecond Channel (MSC) Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Microsecond Channel (MSC) Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Compliant to 2005-01-0057 specification.
  • Supports high speed synchronous downstream and low speed asynchronous upstream
  • bus.
  • Supports bidirectional interface.
  • Supports following devices,
    • TLE8888QK
    • TLE8718SA
    • L9779WD
  • Supports the following transmission modes,
    • Triggered mode
    • Data repetition mode
  • Supports the following frames in downstream transmission,
    • Command frame
    • Data frame
  • Supports the following frames in upstream transmission,
    • 12 bit frame
    • 16 bit frame
  • Supports transmission with and without SEL bit for data frame.
  • Supports parity error checker for upstream transmission.
  • Supports the baud divider rates of 4, 8, 16, 32, 64, 128 and 256 for upstream transmission.
  • Supports insertion and detection of various types of errors.
  • Notifies the testbench of significant events such as transactions, warnings and protocol violations.
  • MSC Verification IP comes with complete testsuite to verify each and every feature of MSC specification.
  • MSC monitor has built in coverage analysis.
  • MSC monitor checks for protocol errors and timing violations.

Block Diagram

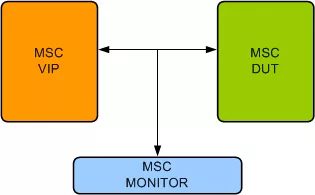

Microsecond Channel (MSC) VIP block diagram

Benefits

  • Faster testbench development and more complete verification of MSC designs.
  • Easy to use command interface simplifies testbench control and configuration of Master and Device.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

What’s Included?

  • Complete regression suite containing all the MSC testcases.
  • Examples showing how to connect various components, and usage of Master, Device and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Microsecond Channel (MSC) VIP
Vendor
SmartDV Technologies

Provider

SmartDV Technologies
HQ: India
At SmartDV Technologies™, we believe there’s a better way to approach semiconductor intellectual property (IP) for integrated circuits. We’ve been focused exclusively on IP since 2007—so whether you’re sourcing standards-based design IP for your next SoC, ASIC, or FPGA, or seeking verification solutions (VIP) to put your chip design through its paces, you’ll find SmartDV’s IP straightforward to integrate. By combining proprietary SmartCompiler™ technology with the knowledge of hundreds of expert engineers, SmartDV can customize IP to meet your unique design objectives: quickly, economically, and reliably. Don’t allow other suppliers to force onesize-fits-all cores into your chip design. Get the IP you need, tailored to your specifications, with SmartDV: IP Your Way.
Contact SmartDV Technologies
