Vendor: Cadence Design Systems, Inc. Category: Multi-Protocol PHY

PHY for PCIe 6.0 and CXL

Most PHY and Controller for HPC, AI/ML, Data communications, networking, and storage systems The PHY IP for PCI Express® (PCIe®) …

Contact Provider Request Datasheet

Overview

Most advanced PHY and Controller for HPC, AI/ML, Data communications, networking, and storage systems

The PHY IP for PCI Express® (PCIe®) 6.0 is a high-performance NRZ/PAM4 SerDes designed specifically for infrastructure and data center applications. The SerDes’s ultra-long-reach equalization and robust clock-data recovery capabilities allow it to achieve unparalleled performance and reliability. In addition, the SerDes IP features low data path latency and low power consumption, making it ideal for deployment in time-sensitive applications in high-performance computing (HPC), artificial intelligence and machine learning (AI/ML), data communications, networking, and storage systems.

Key features

  • Architecture optimized for HPC, AI/ML, storage, and networking
  • Ultra-long reach, low latency, and low power
  • Advanced DSP delivers unmatched performance and reliability
  • Comprehensive real-time diagnostic, monitor, and test features
  • Bifurcation support for x1, x2, x4, x8, and x16 lanes

Block Diagram

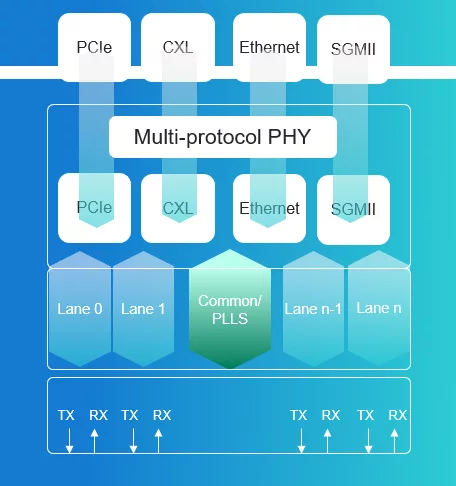

PHY for PCIe 6.0 and CXL block diagram

Applications

  • Communications,
  • Consumer Electronics,
  • Data Processing,
  • Industrial and Medical,
  • Military/Civil Aerospace

What’s Included?

  • Integration Views: Verilog behavioral model, GDSII, CDL, and power models
  • Synthesizable RTL
  • DFT-Verilog netlists with SS/FF, CTL, and BSDL
  • Reference Verilog testbenches used for generating SoC-level VCD ATE test patterns for PHY
  • IBIS-AMI kit
