Vendor: Arasan Chip Systems Inc. Category: Soundwire

MIPI SoundWire Slave Controller 1.2

MIPI SoundWire®Slave Controller, typically integrated into audio DSP/Codecs or directly into audio peripherals such as Microphone…

Contact Provider Request Datasheet

Overview

MIPI SoundWire®Slave Controller, typically integrated into audio DSP/Codecs or directly into audio peripherals such as Microphones and Amplifiers used in smart phones, tablets and mobile PCs.  The IP when integrated provides SoundWire, a new audio interface to connect to Master typically embedded in Application Processor or Audio Codecs.

Key features

  • Compliant with MIPI SoundWire specification version 1.2
  • Configurable number of Data Ports – 1-14
  • BRA Support over Data Port 0
  • Supports full address range using Address Paging registers
  • Supports accesses to registers implemented external to the IP
  • Configurable Direction – Source or Sink
  • Supports ClockStop Modes
  • Implements High PHY support
  • Implements all three layers and provides a simple application interface
    • PHY
    • Framer
    • Transport (Data and Control Ports)
    • Application Interface

Block Diagram

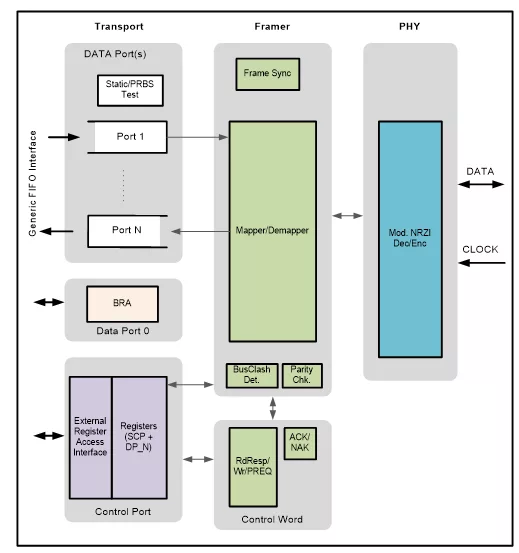

MIPI SoundWire Slave Controller 1.2 block diagram

What’s Included?

  • Source RTL
  • Synthesis scripts
  • Controller simulation environment
  • User guide
  • Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MIPI SoundWire Slave Controller 1.2
Vendor
Arasan Chip Systems Inc.

Provider

Arasan Chip Systems Inc.
HQ: USA
Arasan Chip Systems, is a leading provider of IP for mobile storage and mobile connectivity interfaces with over a billion chips shipped with our IP. Arasan’s high-quality, silicon-proven, Total IP Solutions include digital IP, Analog Mixed Signal PHY IP, Verification IP, HDK, and Software. Arasan has a focused product portfolio targeting mobile SoCs. The term Mobile has evolved over our two-decade history to include all things mobile – starting with PDA’s in the mid 90’s to smartphones to today’s Automobiles, Drones, and IoT. Arasan is at the forefront of this evolution of “Mobile” with its standards-based IP at the heart of Mobile SoCs.
