Vendor: Arasan Chip Systems Inc. Category: Soundwire

MIPI SoundWire Master Controller 1.2

The Master Controller integrated into application processor or audio DSP used in smart phones, tablets and mobile PCs.

Contact Provider Request Datasheet

Overview

The Master Controller integrated into application processor or audio DSP used in smart phones, tablets and mobile PCs.  The IP when integrated provides SoundWire, a new audio interface to connect to audio peripherals such as PCM or PDM amplifiers, microphones and audio codecs.

Key features

  • Compliant with MIPI SoundWire specification version 1.2
  • Configurable number of Data Ports Configurable Direction – Source or Sink
  • Implements clock gearbox with programmable frequency divider
  • Implements SoundWire Bus Clock Stop and WakeUp detection
  • Implements High-PHY support
  • Implements all three layers and provides a simple application interface
  • PHY
  • Framer
  • Transport (Data and Control Ports)
  • Application Interface

Block Diagram

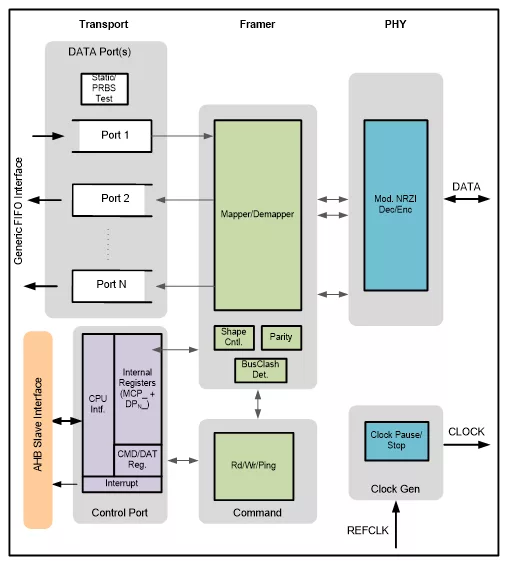

MIPI SoundWire Master Controller 1.2 block diagram

What’s Included?

  • Source RTL
  • Synthesis scripts
  • Controller simulation environment
  • User guide
  • Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MIPI SoundWire Master Controller 1.2
Vendor
Arasan Chip Systems Inc.

Provider

Arasan Chip Systems Inc.
HQ: USA
Arasan Chip Systems, is a leading provider of IP for mobile storage and mobile connectivity interfaces with over a billion chips shipped with our IP. Arasan’s high-quality, silicon-proven, Total IP Solutions include digital IP, Analog Mixed Signal PHY IP, Verification IP, HDK, and Software. Arasan has a focused product portfolio targeting mobile SoCs. The term Mobile has evolved over our two-decade history to include all things mobile – starting with PDA’s in the mid 90’s to smartphones to today’s Automobiles, Drones, and IoT. Arasan is at the forefront of this evolution of “Mobile” with its standards-based IP at the heart of Mobile SoCs.
