MIPI D-PHY Transmitter/Receiver for TSMC 40nm LP
The Renesas MIPI D-PHY Transmitter/Receiver is useful 2 Data Channel transmitter/receiver hard macro for DSI/CSI-2 of TSMC 40nm L…
Overview
The Renesas MIPI D-PHY Transmitter/Receiver is useful 2 Data Channel transmitter/receiver hard macro for DSI/CSI-2 of TSMC 40nm LP process.
Key features
- Renesas MIPI D-PHY Transmitter/Receiver can be used for analog Transmitter/Receiver of following interface.
- MIPI alliance Specification for D-PHY Version 2.1 15 December 2016.
- MIPI alliance Specification for Display Serial Interface (DSI) Version 1.3.1 Aug 2015.
- MIPI alliance Specification for Camera Serial Interface 2 (CSI-2) Version 2.0 7 Dec 2016.
- Technology is TSMC 40nm LP 1p6M (4x1z) .
- Supply voltage can be applied 1.1V for core voltage, 1.8V for IO voltage.
- Maximum data rate of each channel is 0.72Gbps at High-speed mode.
Block Diagram

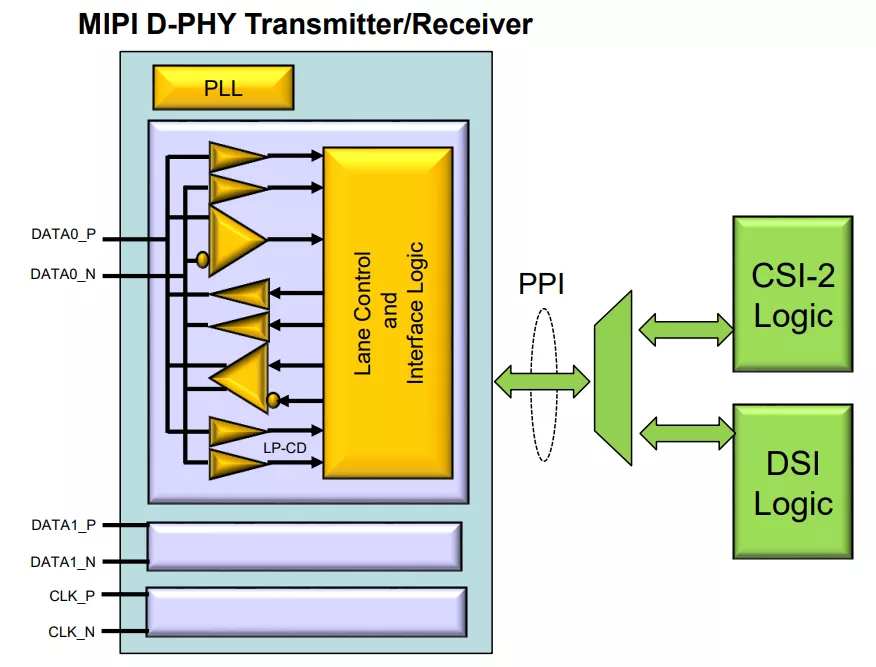

MIPI_D-PHY_CSI/DSI_(TSMC40LP) block diagram
