MIPI D-PHY RX+ (Receiver) IP

The MIPI^® D-PHY RX+ is a proprietary implementation of the MIPI Camera Serial Interface 2 (CSI-2) and Display Serial Interface (DSI) D-PHY Receiver. It is optimized to achieve full-speed production testing, in-system testing, and higher performance compared to traditional configurations, while reducing area and standby power.

As MIPI adoption continues to expand beyond its traditional mobile platform use-cases into safety sensitive applications such as automotive and medical, full-speed, in-system testability and diagnostics have become of paramount importance. The RX+ configuration was created to address those safety and reliability sensitive applications.

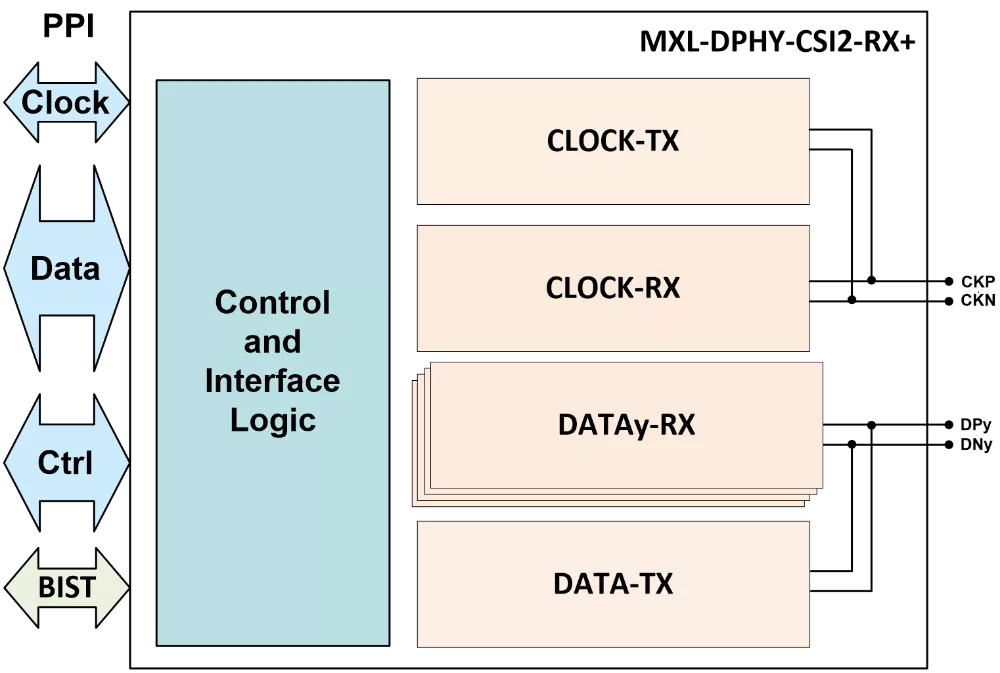

Full-speed production testing using traditional D-PHY requires the use of Universal configuration, which includes multiple high-speed and low-power transmitters not required for functional operation. The RX+ configuration uses a reduced number of simplified transmitters to test multiple data lanes, resulting in a substantial reduction of 35% in area and 50% reduction in standby power.

This patented implementation also enables higher data rate performance by minimizing the capacitive load at the high-speed serial interface pins and isolating the loop back test from any loading on the serial interface pins. All this while achieving 100% test coverage of the complete IP.

The MIPI D-PHY Receiver provides the testability and diagnostics of the D-PHY Universal configuration with the smaller footprint and improved performance of D-PHY RX. The  D-PHY RX+ is truly the best of both.

• Silicon proven in multiple foundries and process nodes​
• Tier-1 customers are going into production with a differentiated solution​
  • Supports CSI-2, DSI and DSI-2 applications​
• Issued U.S. Patent 10,289,511 for implementation​
• Area and power reduction compared with Universal​
  • Area reduction: ~35 % ​
  • Leakage Power reduction: ~50 %​
• Improved testability compared with RX configuration​
  • Full-speed production test​
  • In-system testability and diagnostics
