Vendor: Truechip Solutions Category: MIPI PHY

MIPI CSI-2 with C-PHY Verification IP

The MIPI CSI-2 with C-PHY Verification IP provides an effective & efficient way to verify the components interfacing with MIPI CS…

Contact Provider Request Datasheet

Overview

The MIPI CSI-2 with C-PHY Verification IP provides an effective & efficient way to verify the components interfacing with MIPI CSI-2 with C-PHY interface of an IP or SoC. The MIPI CSI-2 with C-PHY VIP is fully compliant to MIPI Alliance CSI-2 Specification Version 4.0.1 along with MIPI Alliance C-PHY Specification Version 2.1. The VIP is a light weight with easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Compliant to MIPI CSI-2 Specification Version 4.0.1 along with MIPI C-PHY Specification Version 2.1 with PPI interface
  • Supports upto 32 virtual channels with C-PHY
  • C-PHY supports MFEN and SFEN for CSI-2 TX and RX respectively for Data Lane greater than 1
  • C-PHY supports MFAA and SFAA for CSI-2 TX and RX respectively for Data Lane 1 module
  • Support for a configurable number of lanes.
  • Configurable ULPS mode & other CSI-2 configurations using CCI Commands
  • Supports CCI (I2C)/CCI (I3C) bidirectional control interface
  • Supports all types of Sync Word insertion and detection during data payload transmission
  • Supports Data Lane distribution and merging in case of multi-Lane configuration along with filler byte insertion
  • Supports Unified Serial Link (USL) to alleviate the use of CCI with a single bidirectional PHY lane (Lane-1)
  • Support both LP and ALP modes for USL
  • Support for LRTE and data scrambling
  • Supports High-Speed, Low Power Escape, Alternate low power (ALP) & Control modes
  • Supports 16-bit to 7-symbol Mapper and 7-symbol to 16-bit Demapper
  • Supports symbol encoding and decoding
  • Supports dynamically configurable modes
  • Supports all Short and Long packet formats
  • Supports CRC generation and detection
  • Supports all primary and secondary CSI-2 data formats
  • Supports Frame/ Line Synchronization
  • Supports both Data Type Interleaving and Virtual Channel Interleaving frames
  • Strong Protocol Monitor with real-time exhaustive programmable checks available for each LLP, LM, PHY layer, and also for PPI.
  • Supports Dynamic as well as Static Error Injection scenarios at both Protocol and PHY layer
  • On-the-fly protocol checking using assertions
  • Built-in Coverage analysis
  • Provides a comprehensive user API (callbacks) in Transmitter and Receiver
  • Graphical analyzer for all Layers to show transactions for easy debugging

Block Diagram

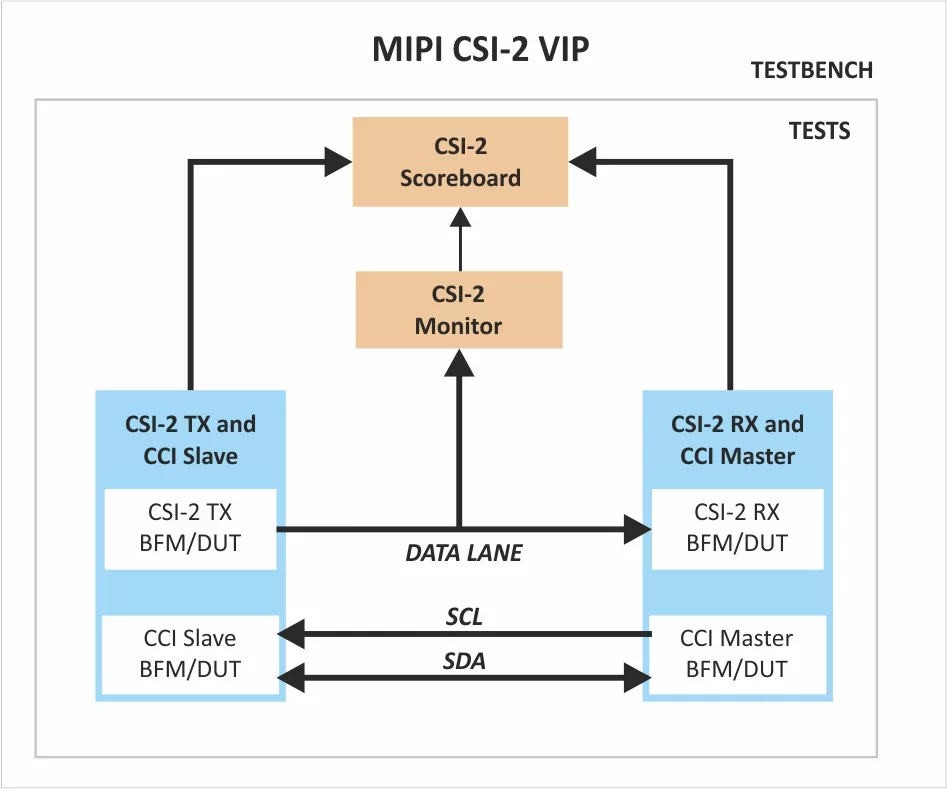

MIPI CSI-2 with C-PHY Verification IP block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • MIPI CSI-2 TX/RX BFM/Agent
  • MIPI CSI-2 Monitor and Scoreboard
  • CCI Master/Slave BFM/Agent
  • Test Environment & Test Suite:
    • Basic and Directed Protocol Tests
    • Random Tests l Error Scenario Tests
    • Assertions & Cover Point Tests
    • Conformance Tests
  • Integration Guide, User Manual, and Release Notes

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MIPI CSI-2 with C-PHY Verification IP
Vendor
Truechip Solutions

Provider

Truechip Solutions
