MIPI CSI2 Transmit Controller

The Veriest Solutions MIPI CSI-2 v1.1 Transmit Controller facilitates transmission over a standard high-speed unidirectional seri…

Contact Provider Request Datasheet

Overview

The Veriest Solutions MIPI CSI-2 v1.1 Transmit Controller facilitates transmission over a standard high-speed unidirectional serial interface between CSI-2 Transmitter and Receiver. The receiver is typically a host image processor. The transmitter is typically part of a camera device supplying image data. The DPHY is the physical layer block to which the MIPI CSI-2 Transmit controller interfaces for transmission.

The CSI-2 Transmitter receives pixels by way of the ISP Interface or packed data by way of the PDI Interface. The CSI-2 Transmit Controller converts pixels into a byte stream, calculates and appends an ECC value to a short packet or to the header of a long packet. Packets are buffered in a FIFO and synchronized to the High-Speed Byte clock domain and sent to one or more of D-PHY lanes depending upon the lane distribution scheme set by the camera sensor.

Key features

  • Camera Serial Interface (CSI-2) version 1.1
  • D-PHY version 1.1
  • CSI-2 interface on device side supports
    • Connectivity to D-PHY through PHY Protocol Interface (PPI) Interface
    • Configurable up to 4 data lanes
    • Maximum data rate of up to 1.5 Gbps per data lane
    • Data synchronization from core clock domain to TxByteClkHS domain
    • Support for Ultra Low Power Mode
  • AMBA APB Slave for Control and Status
  • CSI2 Protocol Layer supports
    • All primary and secondary CSI-2 data formats
    • Short and Long packet formats
    • Check-Sum (CRC) Generation
    • Error Correction Code (ECC) Generation
    • Up to 4 image streams using virtual channels
    • Data Type and Virtual Channel Interleaving
  • External ISP interface supports
    • Pixel Based User Interface (single, double, quad pixel wide)
    • RAW and YUV formats
    • Pixels to Byte Packing
  • Packed Data Interface (PDI) supports
    • 32-bit Packed Data (recommended memory storage format)
    • Generic or user-defined byte-based data types
  • Test interface for general purpose configuration of D-PHY
    • Compatible with Synopsys DPHY

Block Diagram

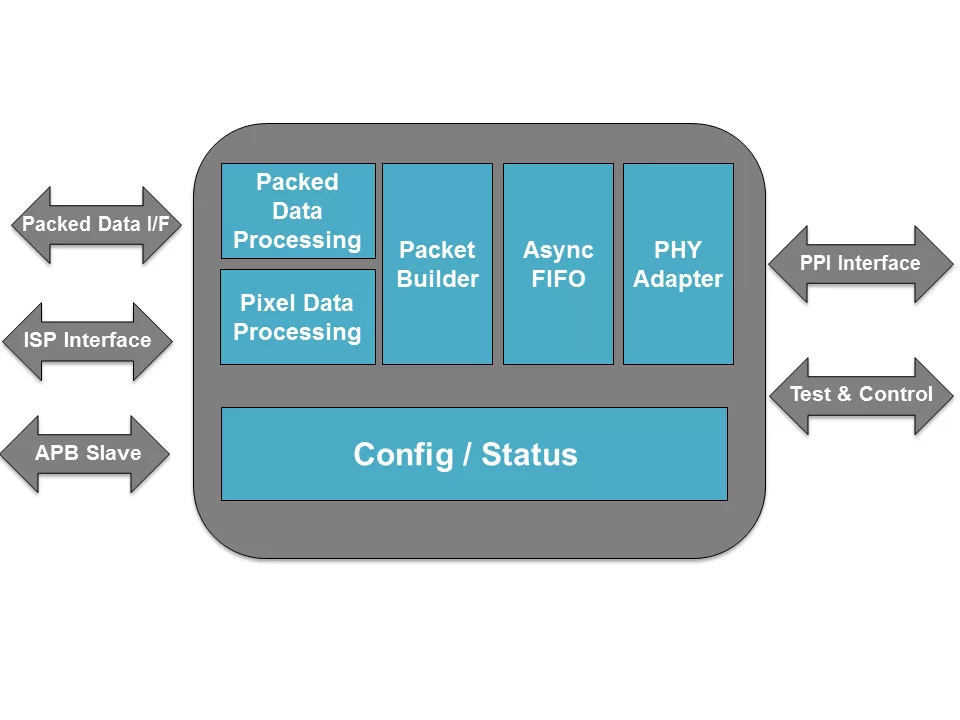

VV1300 block diagram

Benefits

  • Low Gate Count
  • Low Power Consumption
  • Fully Verified in with Advanced Function Verification
  • Spyglass Lint Validated
  • Standards Compliant

Applications

  • MIPI CSI2 Compliant Camera Sensor

What’s Included?

  • Synthesizable Verilog RTL
  • Verilog test bench and test cases
  • System Verilog verification environment and test cases
  • Detailed block diagram and technical documents

Specifications

Identity

Part Number
VV1300
Vendor
Veriest Solutions Ltd.
Type
Silicon IP

Provider

Veriest Solutions Ltd.
HQ: Israel
