Vendor: Weasic Microelectronics Category: PLL

Low Power 300-600 MHz programmable PLL

The WEAPLL400M22 is a low power integer PLL operating at a single 0.8 V power supply.

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX View all specifications

Overview

The WEAPLL400M22 is a low power integer PLL operating at a single 0.8 V power supply. This PLL has a wide programmable frequency range operation operating from 300 MHz up to 600 MHz. The VCO outputs are coming into 8 cascaded phases. The PLL needs a sourcing current of 2 uA in order to operate. In the PLL logic, scan chain has been implemented for complete IP testability.

Key features

  • Layout Area: 460 um X 290 um
  • Low Power PLL
  • PN (SSB): -80 dBc/Hz at Δf = 1 MHz
  • Reference input: 16 MHz to 50 MHz
  • Power Dissipation: 1.5 mW
  • Output frequency range: 360 MHz to 600 MHz
  • Lock time: < 50 us
  • Ring-VCOs with 128 Bands
  • Automatic VCO/Band Selection System
  •

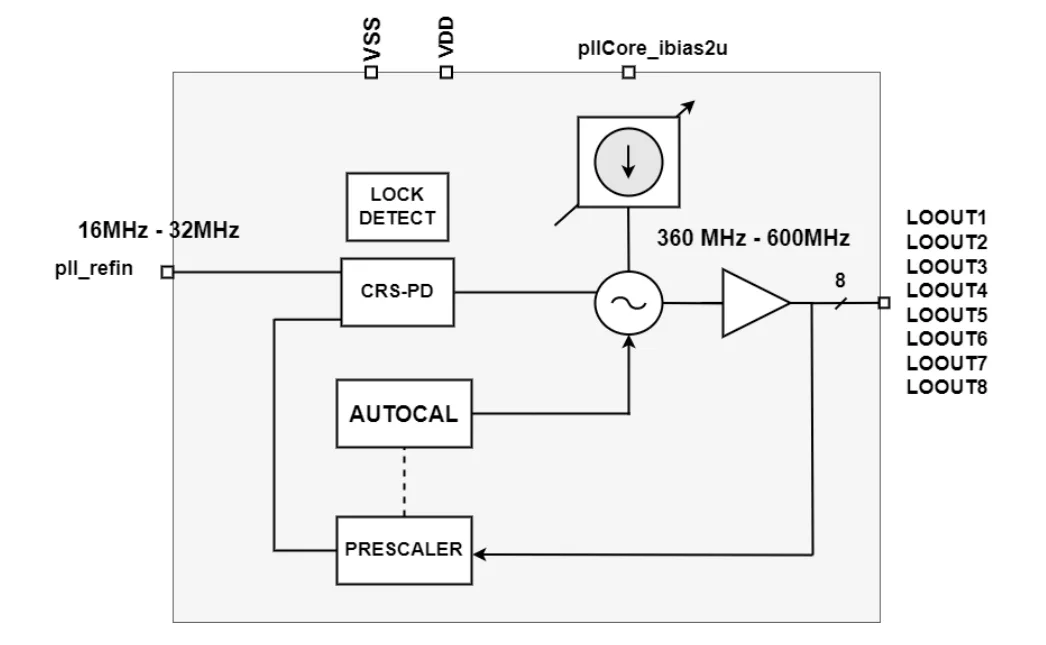

Block Diagram

WEAPLL400M22 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX —

Specifications

Identity

Part Number
WEAPLL400M22
Vendor
Weasic Microelectronics

Provider

Weasic Microelectronics
HQ: Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
