Vendor: Tetrivis Category: RF Front End

Ku-Band Phased Array Tx-FE in TSMC 180nm RF

The TRV801TSM180RF IP is a Ku-Band (14GHz to 14.5GHz) Transmitter (Tx) in TSMC 180nm RF CMOS process technology.

Contact Provider Request Datasheet
TSMC 180nm RF View all specifications

Overview

The TRV801TSM180RF IP is a Ku-Band (14GHz to 14.5GHz) Transmitter (Tx) in TSMC 180nm RF CMOS process technology. It integrates X+Y transmitter channels on the same die and its low power makes it especially suitable for use in high-throughput modular digital Phased-Array Antenna products for mobile/tethered satellite communication applications.

Key features

  • 14GHz to 14.5GHz RF Output Bandwidth
  • Direct up-conversion and IQ Generator Circuitry
  • Dual X + Y PA
  • -10dB S11 (X or Y RF Outputs)
  • 100mA Current Consumption
  • -135dBm/Hz Rx-Band Output Noise Density
  • 15dBm OIP3
  • 5dBm Tx Saturated Output Power
  • 36dB Linear and 31.5dB Log Attenuator Range

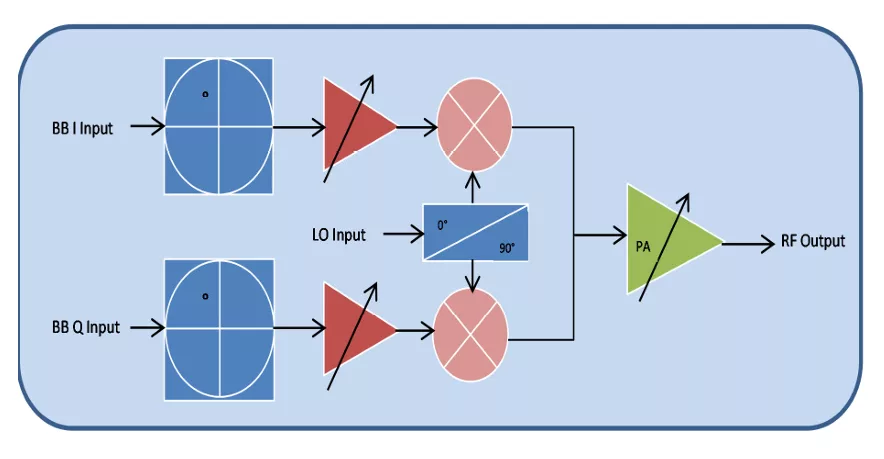

Block Diagram

TRV801TSM180RF block diagram

What’s Included?

  • Behavioural Models
  • Layout Abstract View
  • Timing Models
  • GDSII Layout Database
  • Netlist for LVS verification
  • Usage and Integration Guidelines
  • Databook

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 180nm RF —

Specifications

Identity

Part Number
TRV801TSM180RF
Vendor
Tetrivis
Type
Silicon IP

Provider

Tetrivis
HQ: United Kingdom
Tetrivis provides Analogue, Mixed-Signal, RF and mm-Wave Integrated Circuit design/consulting services and develops ASICs and IP subsystems ranging from DC to 35GHz in Bipolar, BiCMOS and CMOS process technologies (0.5um to 22nm nodes). Tetrivis has put together an IP portfolio in a variety of nanometer-CMOS process nodes encompassing high-performance and low-power data converter, clock synthesis, RF, baseband and power management functions. Tetrivis has been expending research and development effort in providing innovative smart antenna chipset design architectures for use in the emerging LEOSAT market. With extensive experience in the latest IC tear-down and debug methodologies including Focused-Ion-Beam (FIB) debugging, Tetrivis can help you track down and repair problems on your designs. With a plethora of customers and collaborators across the semiconductor industry, we are well positioned to meet your various high-performance integrated circuit design needs.
