Ka-Band (24 − 31GHz) 8-Channel Beamformer

NEXUS28Z is a CMOS integrated circuit, implementing integrated, mmWave, agile beamforming offering high performance and configura…

Contact Provider Request Datasheet

Overview

NEXUS28Z is a CMOS integrated circuit, implementing highly integrated, mmWave, agile beamforming offering high performance and configurability for target applications. NEXUS28Z delivers a versatile combination of high performance and low power consumption, operating in the frequency range of 24-31GHz. It consists of 8 TX/RX front-ends, which can be split in 2 orthogonal polarizations (4 horizontal and 4 vertical).

The receiver (RX) front-end provides low noise figure, 19dB gain after combining and 50dB gain control in steps of 0.5dB, 20dB of which are used for beam tapering and are almost phase invariant. After calibration, the phase rotation covers 360deg with a 5.6deg step and minimum gain variation (<0.7dB). An integrated power detector monitors the RX output level.

The transmitter (TX) FE delivers high 1dB compression, with a gain of 24dB including input split, and 60dB GC in steps of 0.5dB, 18dB of which are used for beam tapering and are almost phase invariant. After calibration, the phase rotation covers 360deg with 5.6deg step and minimum gain variation (<1.4dB). Its output power can be sensed by an integrated power detector.

The chip is packaged in a CSP.

Key features

  • 8-channel (4 V-pol and 4 H-pol) Analog Beamformer
  • Frequency Range: 24 − 31GHz
  • TX gain : 24dB, Gain Control (GC) Range : 60.5dB
  • RX gain : 18.8dB, GC Range : 51dB
  • TX Saturation Power: 18dBm
  • RX Noise Figure: 4.7dB
  • Single-ended 50Ω Input/Output Impedance
  • 4-wire serial peripheral interface (SPI) Control
  • 512 on-chip programmable beam vectors for V-pol and 512 for H-pol
  • Internal PA power detectors and temperature sensors
  • DC power: 1.15W in RX, 4.43W in TX mode (nominal output power of 10dBm/channel)
  • Size: 5.6 × 4.3mm2
  • 4-bit chip address
  • Supply voltage 1.8V

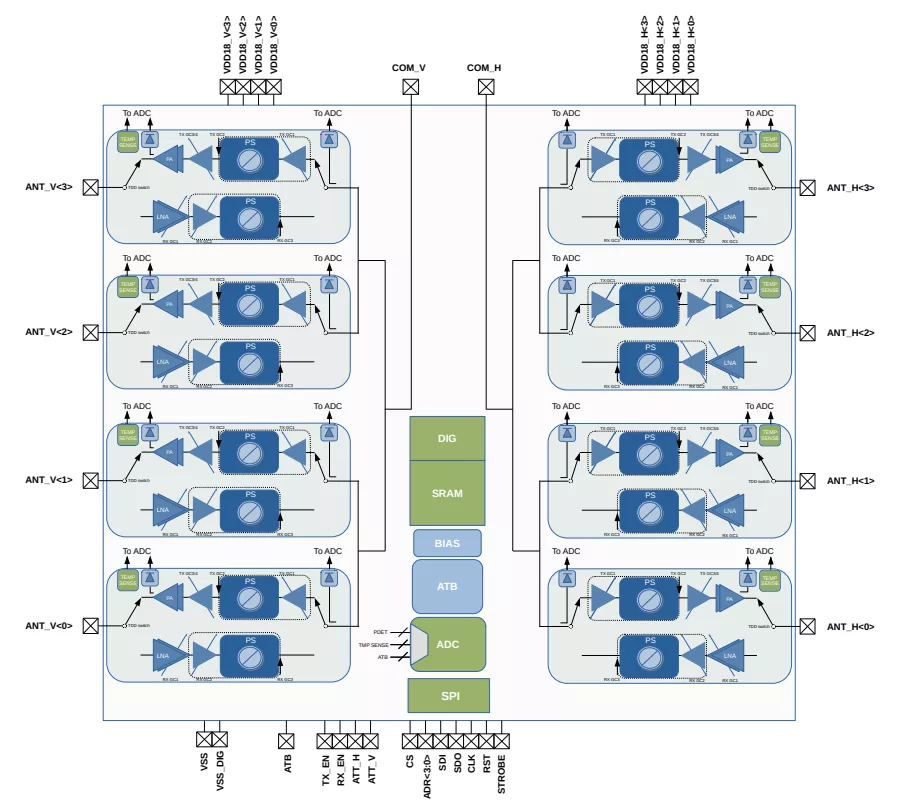

Block Diagram

NEXUS28Z block diagram

Applications

  • Fixed Wireless Access Systems
  • 5G Communication Systems
  • SATCOM
  • RADAR

What’s Included?

  • Evaluation board
  • Netlist
  • Documentation
  • GDSII LEF, .lib files
  • Footprint (LEF)
  • Testbench
  • Behavioral model (verilog/verilogA)

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
NEXUS28Z
Vendor
Akronic, P.C.
Type
Silicon IP

Provider

Akronic, P.C.
HQ: Greece
Specialized in RF and mmWave IC design, Akronic is a fabless semiconductor company providing cutting-edge silicon solutions and design services for wireless transceivers, RADAR sensors and antenna beamforming systems. In tight collaboration with customer internal teams, Akronic delivers highly integrated microelectronics extending from prototyping to production turnkey solutions, enabling working silicon realities. Customers span from tier-1 players to stealth-mode start-ups across the telecom, automotive, aerospace and IoT market sectors. Akronic continuously keeps abreast of the latest market and technology trends and delivers silicon breakthroughs for Active Electronic Steerable Antennas (AESA) for 5G, SATCOM and RADAR. By combining optimal system architecture and calibration methodologies, with innovative mmWave circuit and packaging design techniques, Akronic offers unique blending of performance and overall recurring cost. Akronic's extensive silicon portfolio, among others, includes the agile ALTUS28TR Ka-band transceiver, its companion NEXUS9X, X-band, supreme performance fractional-N PLL (with FMCW RADAR support), and a cutting-edge high-output power Ka-band beamformer.
