Vendor: Silicon Creations Category: PLL

High Quality LC-PLLs

Silicon Creations provides precise, ultra-low jitter LC-tank based PLLs for demanding applications such as AFE, Converter, high-e…

Contact Provider Request Datasheet

Overview

Silicon Creations provides precise, ultra-low jitter LC-tank based PLLs for demanding applications such as AFE, Converter, high-end PHY and RF clocking. Our LC-PLL portfolio includes:

  • Advanced Fractional-N LC-PLLs with all digital architecture supporting an LC-Tank are proven in 7nm FinFET and commencing production. These IPs are low power (below 10mW), small (below 0.1mm2) and can provide broadband jitter comfortably below 300fs RMS.
  • 28nm Fractional-N synthesizers in production in TSMC, UMC and SMIC with generated LTJ below 500fs RMS broadband and below 150fs RMS integrated above 1MHz.

Key features

  •  Wideband integrated jitter <400fs in integer mode, <800fs in fractional mode with high-speed / clean reference with active fractional noise cancellation
  •  Passes PCIe6 reference clock requirements with wide margin
  •  Reference spur <200fs RMS
  •  Random period jitter <30fs RMS
  •  Low-leakage standby mode for fast re-locking
    •  “Instant” frequency lock from standby
    •  < 0.1% frequency error over PVT for open-loop DCO
  •  ±8% frequency tuning range
  •  Programmable loop bandwidth

Block Diagram

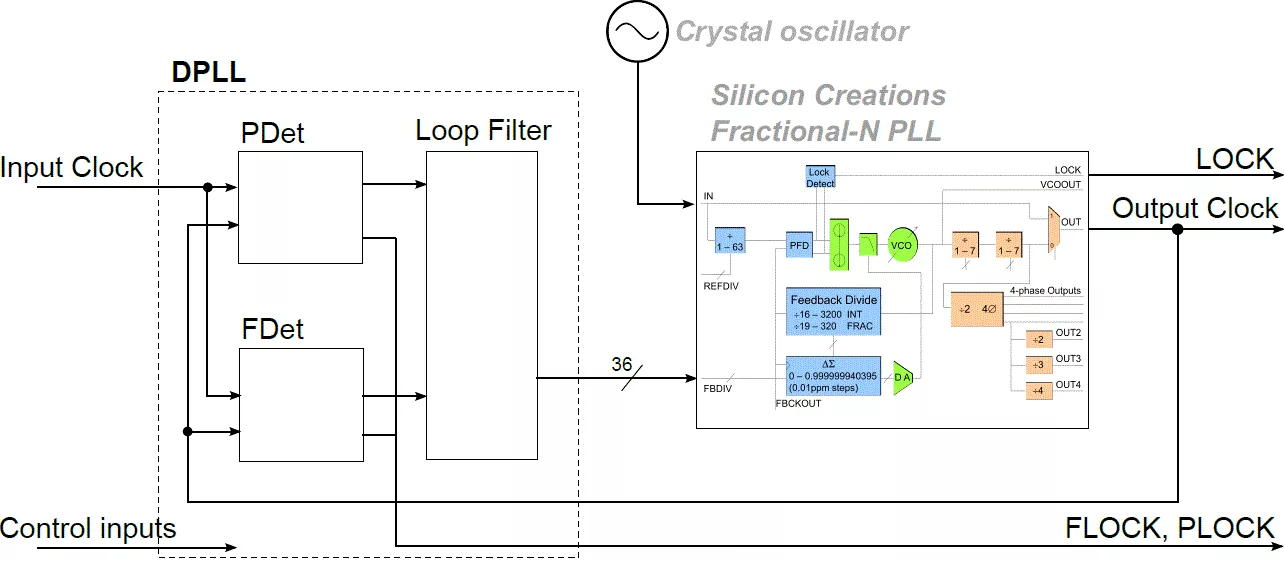

LC-PLLs block diagram

Benefits

  • Saves power and system cost:
  • Replaces expensive (>$10) external jitter cleaner PLL chips requiring off-chip differential buffers and receivers with silicon area costing just a few cents.
  • Reduces risk.

Applications

  • Clock de-spreading for Video format converters.
  • Jitter cleaning for Synchronous Ethernet and Gapped Clock cleaning in OTU systems

What’s Included?

  • Synthesizable RTL (Verilog)
  • Timing constraints
  • Documentation
  • Comprehensive support

Specifications

Identity

Part Number
LC-PLLs
Vendor
Silicon Creations
Type
Silicon IP

Provider

Silicon Creations
HQ: USA
Silicon Creations provides world-class silicon intellectual property (IP) for precision and general-purpose timing (PLLs), SerDes and high-speed differential I/Os. Silicon Creations' IP is in production from 5nm to 180nm for diverse applications including smart phones, wearables, consumer devices, processors, network devices and medical devices. With a complete commitment to customer success, Silicon Creations’ IP has an excellent record of first silicon to mass production in over 500 chips for over 220 customers and has earned “best-of” awards from TSMC and SMIC. Silicon Creations, founded in 2006, is self-funded and growing. The company has development centers in Atlanta, USA, and Krakow, Poland, and worldwide sales representation.
