Vendor: Andes Technology Corp. Category: CPU

ISO26262 ASIL-B/D Compliant 32-bit RISC-V Core

The AndesCore™ D23-SE is a 32-bit 3-stage pipeline CPU IP core based on AndeStar™ V5 architecture for embedded applications with …

Contact Provider Request Datasheet
RISC-V View all specifications

Overview

The AndesCore™ D23-SE is a 32-bit 3-stage pipeline CPU IP core based on AndeStar™ V5 architecture for embedded applications with small gate count, and some dual-issue ability. In addition to commonly used RISC-V IMAC, single/double precision FPU and DSP extensions, it supports the recently ratified ISA extensions such as B (bit manipulation), K (scalar cryptography), CMO (cache management operations) as well as Zce (code size reduction), plus Andes Custom Extension™ (ACE) for user-defined instructions. D23-SE supports split-mode that 2 cores could run independently when split-lock is configured. Safety features include dual-core lockstep (DCLS) that is a real-time diagnostic using an additional processor and a comparator to enhance the diagnostic coverage; ECC for memory soft error protection; bus protection to protect bus transaction; core trap status bus interface provides real time information of trap status from core. Approved based on the functional safety assignments of a Safety Element Out-of-Context (SEooC), which includes the ISO 26262 compliant development process and the qualitative as well as quantitative approaches with respect to hardware safety analysis, D23-SE is certified to be ASIL-B/D and used in highest safety-related applications.

Functional Safety

  • AndesCore™ D23-SE processor core certified by parts 2, 4, 5, 7, 8 and 9 of the standards, meeting the architectural metrics and random hardware fault metrics requirements for ASIL B/D
  • D23-SE supports split-mode that 2 cores could run independently when split-lock is configured. ECC for memory soft error protection; bus protection to protect bus transaction; core trap status bus interface provides real time information of trap status from core.
  • Safety Mechanism: Split/Lock (ASIL-B/D); Single Core (ASIL-B)
  • Three product name: D23-SE-DCLS; D23-SE-DCLS-LOCK; D23-SE-SC

Key features

  • AndeStar™ V5 ISA, including:
    • RV32 I,M,A,C,F,D,B,P,K,CMO, and Zce
    • Andes extensions for performance and functionality enhancements
  • 3-stage pipeline optimized for gate count and efficiency
  • 16/32-bit mixable instructions for code density
  • Instruction and data caches to speed up accessing embedded or external flash memory
  • Branch predication to speed up control code
  • Enhanced and Supervisor-mode Physical Memory Protection (ePMP and sPMP) to enhance core security
  • Core-Local Interrupt Controller (CLIC) for fast response, interrupt prioritization and pre-emption and Platform-Level Interrupt Controller (PLIC) for a wide range of cores and system event scenarios
  • Patented CoDense™ technology to compress program code on top of the 16-bit extension
  • Instruction Trace Interface supports RISC-V Processor Trace v2.0
  • Fast interrupt response with shadow registers
  • Separately licensable Andes Custom Extension™ (ACE) for customized acceleration

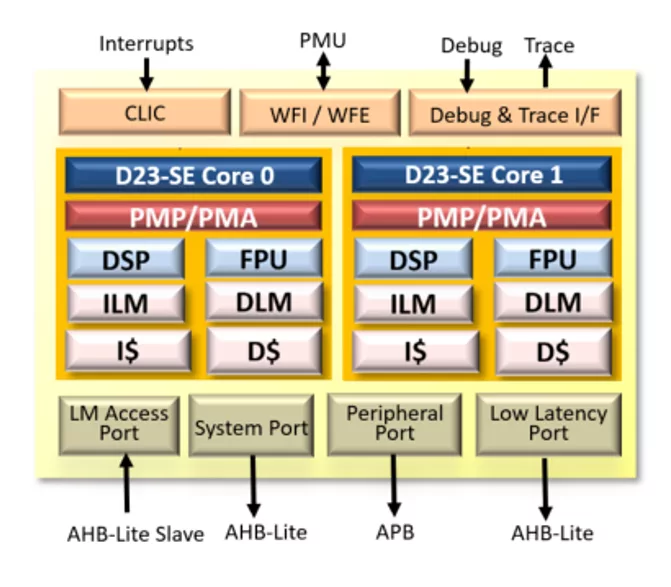

Block Diagram

AndesCore™ D23-SE block diagram

Specifications

Identity

Part Number
AndesCore™ D23-SE
Vendor
Andes Technology Corp.
Type
Silicon IP

Compute

CPU Architecture
RISC-V

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Andes Technology Corp.
HQ: R.O.C
Andes Technology Corporation was founded in the Hsinchu Science Based Industrial Park(SiSoft Research Center) in the first half of 2005. We devote ourselves in developing high-performance/low-power 32-bit processors and its associated SoC platforms to serve the rapidly growing embedded system applications worldwide.
