I2S Controller

I²S Controller is designed to transfer audio data to and from Audio codec.

Contact Provider Request Datasheet

Overview

I²S Controller is designed to transfer audio data to and from Audio codec. It can be configured as both Master and Slave mode using software. The I²S IP is Phillips Inter IC Sound (I²S) specification compliant core for Altera devices.

It is provided as Altera SOPC Builder ready component and integrates easily into any SOPC Builder generated system.

Implementation Results:

Supported Family Resource Utilization Memory Blocks Performance ( Avalon Clock - fmax )
Cyclone III 800 LE 2 M9K 176MHz
Cyclone IV 815 LE 2 M9K 158MHz
Cyclone V 339 ALM 2 M10K 141MHz
Stratix III 512 ALUT 2 M9K 142MHz
Stratix IV 514 ALUT 2 M9K 142MHz
Stratix V 340 ALM 2 M9K 160MHz
Arria II 514 ALUT 2 M9K 160MHz
Arria V 318 ALM 2 M10K 192MHz
MAX 10 769 LE 2 M9K 146MHz

Key features

  • 8-bit and 16-bit sampling data width support
  • Variable sampling rate support
  • Used in both master/slave mode
  • Internal two 64 x 32 bit FIFO for data buffering
  • 32-bit DMA engine for both data transmit and receive for reducing CPU overhead
  • Transmit and Receive Operation
  • Compliant with the Avalon bus
  • Left and Right channel support

Block Diagram

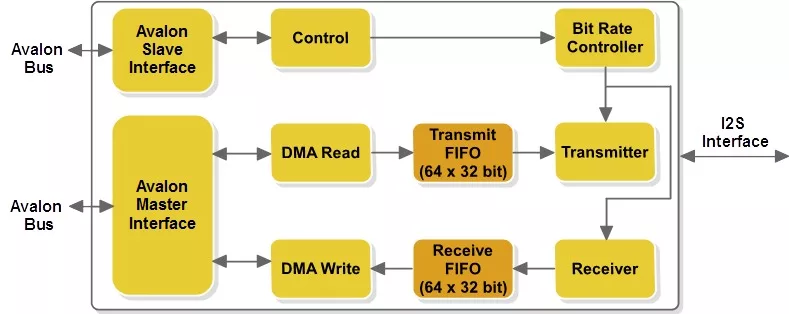

IPR0I2SSFP001 block diagram
