I2C/I2S/LPC Verification IP

The I2C Verification IP provides an effective & efficient way to verify the components interfacing with I2C interface of an IP or…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The I2C Verification IP provides an effective & efficient way to verify the components interfacing with I2C interface of an IP or SoC. The I2C VIP is fully compliant with Rev. 6 of I2C specifications from Philips. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Fully compliant with Rev. 6 of the I2C-Bus Specification and backward compatible upto 2.1 version
  • Full I2C Master and Slave functionality
    • Master Transmitter/Master Receiver
    • Slave Transmitter/Slave Receiver
  • START, repeat START and STOP for all possible transfers
  • Supports all Speed Modes: Standard Speed Mode (upto 100 kb/s), Fast Speed Mode (upto 400 kb/s), Fast Speed Mode Plus (upto 1Mb/s) and High Speed Mode (upto 3.4 Mb/s), Ultra fast mode (upto 5Mb/s)
  • Supports 7-Bit and 10-Bit addressing format
  • Allowstesting of varied bustraffic for Read, Write, General Call
  • Supportsscoreboard feature for end to end data integrity check
  • Notifies the Testbench of significant events such as transactions, warnings, and protocol errors
  • Built in I2C Bus Monitor provides extensive protocol checking
  • Supports Multi-Master and Multi-Slave system
  • Supports Arbitration and Clock Synchronization
  • Supports START Byte, Device ID, Bus Clear and Clock Stretching
  • Supports various error injection and detection
  • Provides verification scalability using functional coverage
  • Provides logging facility for bus traffic in the ASCII format and in user configurable mode
  • Supports Callback in Master and Slave
  • Supports timing checks in the Monitor
  • Supports UVM_RAL Model
  • Supports CCI mode
  • Supports transaction logging with detailed description of each transfer

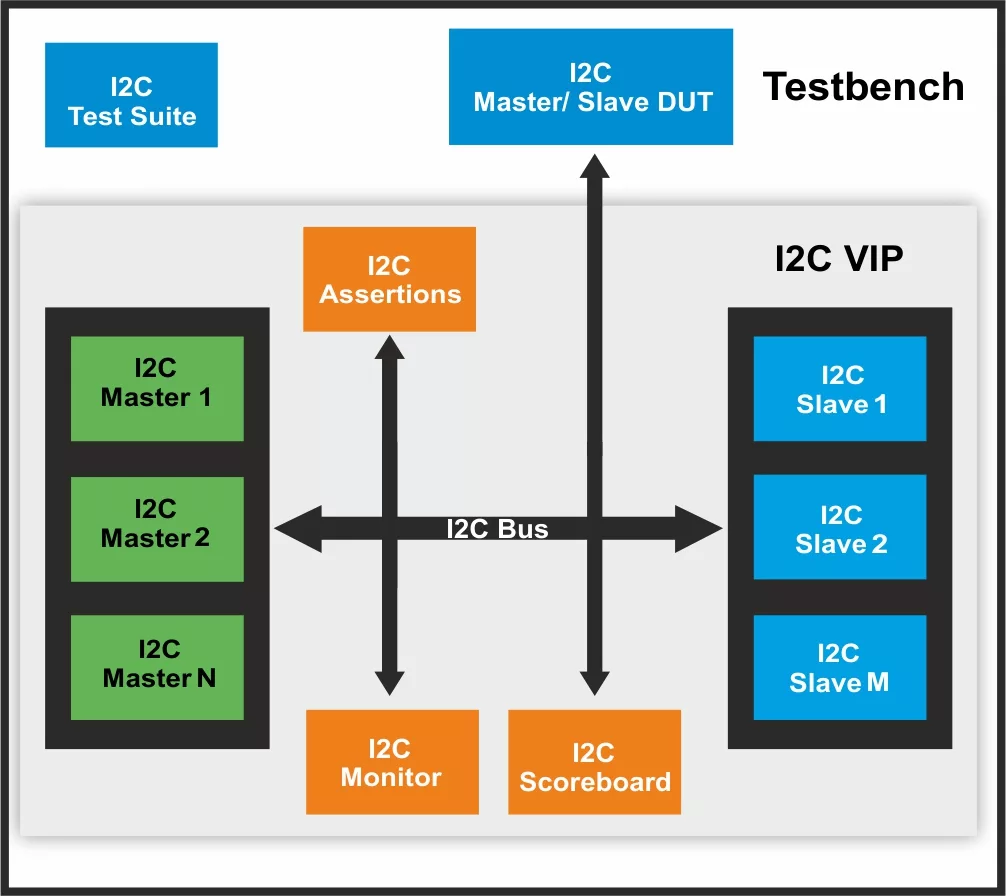

Block Diagram

I2C/I2S/LPC block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure the highest level of quality.
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity example for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs

What’s Included?

  • I2C Master / Slave Agent
  • I2C Monitor and Score board
  • Test Environment & Test Suite:
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
  • Integration Guide, User Manual, and Release Notes
