High-Speed LVDS (SERDES) Transceiver

The LVDS_SERDES IP Core is a high-speed LVDS transmitter / receiver pair suitable for a wide range of serial interface applicatio…

Contact Provider Request Datasheet

Overview

The LVDS_SERDES IP Core is a high-speed LVDS transmitter / receiver pair suitable for a wide range of serial interface applications. The design is comprised of an independent transmitter and receiver that may be used separately or together as a single transceiver.

The transceiver can accept parallel data widths of up to 128-bits and features a user-defined multiplexer ratio. By modifying the generic parameters, dw, ratio, duty, skew, lanes and direction, the transceiver can be made compatible with a wide range of third-party LVDS devices such as those from National Semiconductor®, TI®, Thine® and Maxim®.

In total, the transceiver can support up to 8 serial data lanes - each data lane typically handling rates of between 500 Mbits/s and 1Gbits/s. The maximum data rate attained will be dependent on a wide range of factors such as: cable type, cable length, board layout, and the specification of the LVDS buffers. As a general rule, data rates of 350 Mbits/s per lane can be easily achieved on even the most basic FPGA platforms.

In addition to the 8 data lanes, a single clock lane is provided for synchronizing the data between the transmitter and receiver. Figure 1 shows the basic architecture of the transmitter and receiver pair. The following sections explain the transmitter and receiver functionality in more detail.

Key features

  • Technology independent soft IP Core for FPGA, SoC and ASIC
  • Supplied as human readable VHDL (or Verilog) source code
  • Separate LVDS Transmitter / Receiver (SERDES) pair
  • Up to 8 serial LVDS data lanes + LVDS clock
  • Fully configurable clocking
  • Generic parallel data width up to 128 bits wide
  • Generic parallel-to-serial mux ratio up to 16:1
  • Data rates of up to 1 Gbits per lane
  • Integrated asynchronous FIFOs with underflow / overflow detection
  • Bitwise data alignment at the receiver
  • No receiver source clock required
  • Compatible with a wide range of industry standard protocols including: Channel Link®, Camera Link®, FPD Link®, FlatLink® etc.
  • Robust and simple to implement using cheap twisted pair cable (e.g. Cat 5 Ethernet)

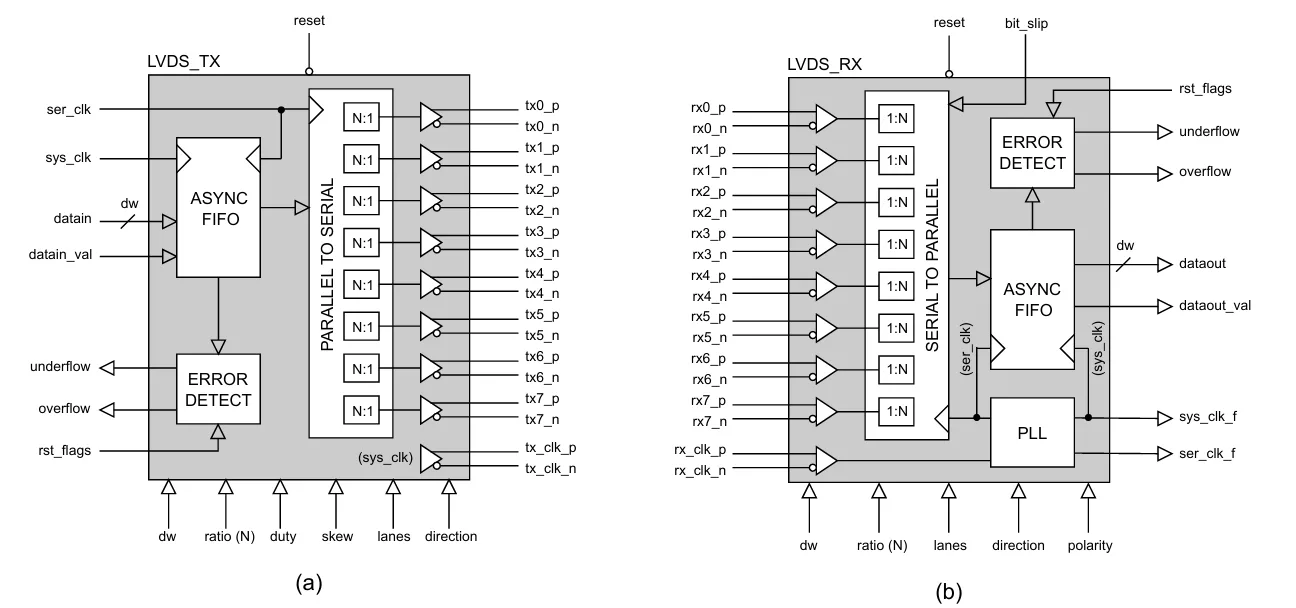

Block Diagram

LVDS_SERDES block diagram

Applications

  • High bandwidth SERDES interfaces
  • Serialization of wide buses e.g. 'virtual' ribbon cable
  • Direct replacement for many commercial LVDS / SERDES ICs
  • Data streaming interfaces over cable or twisted pair over longer distances

Specifications

Identity

Part Number
LVDS_SERDES
Vendor
Zipcores Electronic Systems Engineering S.L.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Zipcores Electronic Systems Engineering S.L.
HQ: Spain
Zipcores design and sell IP Cores for implementation on all semiconductor devices. Founded in 2008, we are a team of experienced Engineers with a broad knowledge of digital hardware design spanning various fields. Our specific areas of expertise include Digital Video, DSP, Digital Modulation and high-speed interfaces. We offer a wide range of IP Cores for a variety of applications from basic building blocks to more complex systems. Our cores are supplied as clear readable VHDL or Verilog source-code and are synthesizable across multiple technologies - whether it be FPGA, ASIC or SoC.
