HIgh-speed & Low latency Search Engine
tCAM-IP is a high performance, extremely low latency and configurable ternary content-addressable memory IP.
Overview
tCAM-IP is a high performance, extremely low latency and highly configurable ternary content-addressable memory IP. tCAM-IP can make deterministic search at 300MSPS continuously speed with constant latency at 7 clock cycles. It can achieve matching/filtering performance at 300,000,000 packets per second over 40G/100G Ethernet. It is ideal for variant applications such as network packet filtering/forwarding, intelligent switch/router, deep packet inspection and network security application. We can provide tCAM-IP custom reference design together with TOE40G/10G/1G-IP, UDP40G/10G/1G-IP, EMAC-IP based on customer requirements. Contact Us
Key features
- Key width 64/56/48/40/32/24/16 bits
- Up to 1M rule entries
- Searching latency is constant at 7 clock cycles
- Up to 400 MSPS @ 400MHz searching speed, 1,000,000 Search/MHz
- Easy to customize rule table memory
- Simple rule table memory setup and user interface signals
- Free evaluation demo combined with DG TOE1G-IP core is available

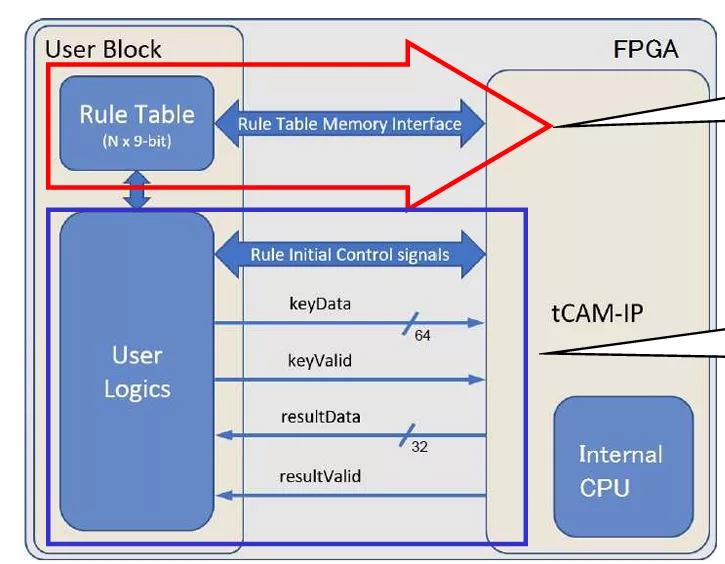

Block Diagram
tCAM-IP block diagram
Benefits
Specifications
Identity
Part Number
tCAM-IP
Vendor
Design Gateway Co., Ltd.
Type
Silicon IP
Video
tCAM-IP introduction "Low Latency & High performance"
Design Gateway tCAM-IP is a high performance, extremely low latency and highly configurable ternary content-addressable memory IP. tCAM-IP can make deterministic search at 200MSPS continuously speed with constant latency at 7 clock cycles.
Files
Note: some files may require an NDA depending on provider policy.
Provider
Design Gateway Co., Ltd.
HQ:
Thailand
Design Gateway is a joint venture business engaging in Electronic and computer engineering industry. We provide design service in hardware and embedded system. Our innovative products are ranging from high quality controller boards, adjustable clock signal synthesizer, compact logic analyzers, LED Display and LED decorative system, etc. We are one of the fastest growing companies based on a solid foundation of our extremely talented engineering team and a high profile management.
