The WEAOPSHC18NI18SFP22M22G is a High current, single ended dual stage Miller operational Amplifier.
Overview
The WEAOPSHC18NI18SFP22M22G is a High current, single ended dual stage Miller operational Amplifier. The Amplifer has two outputs, a high impedance (outp) and a low impedance (outppbuf) provided by a source follower pfet buffer.
Key features
- Power Supply : 1.8 V
- Open loop gain : 87 dB
- PSRR : 73 dB@ 1 KHz
- 44 dB@ 1 MHz
- Noise @100 KHz : -164 dBV/sqrt (Hz)
- 5.6 nV/sqrt (Hz)
- Noise @1 MHz : -169 dBV/sqrt (Hz)
- 3.3 nV/sqrt (Hz)
- Offset :520 uV
- Bandwidth : 7 KHz
- Output impedance : 84 Ohm
- Power Consumption : 10.5 mW
- Slew rate : 111 V/us
- Distortion SFDR @1 MHz: -63 dB
- Area: 211 um x 287 um
- Process : 22FDX
- Metal Option : 19
Block Diagram

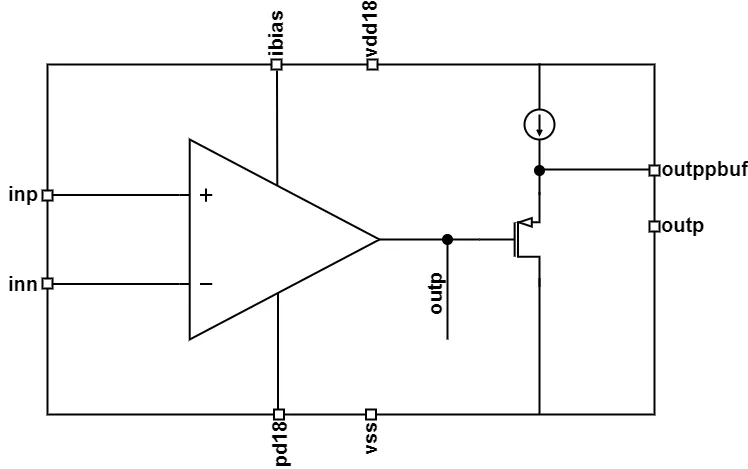

WEAOPSHC18NI18SFP22M22G block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEAOPSHC18NI18SFP22M22G
Vendor
Weasic Microelectronics
Provider
Weasic Microelectronics
HQ:
Greece
