High Bandwidth Differential Output Operational Amplifier
The WEAOPDHB18PI18SFP11M22G is a High Bandwidth one stage differential pmos input Operational Amplifier with common mode feedback…
Overview
The WEAOPDHB18PI18SFP11M22G is a High Bandwidth one stage differential pmos input Operational Amplifier with common mode feedback pmos source follower driven outputs.
Key features
- Power Supply: 1.8 V
- Open loop gain : 31 dB
- PSRR: 130 dB@ 1 KHz
- 80 dB@ 1 MHz
- Noise @100 KHz: -155 dBV/sqrt (Hz)
- 16 nV/sqrt (Hz)
- Noise @1 MHz: -163 dBV/sqrt (Hz)
- 6.5 nV/sqrt (Hz)
- Offset :12 uV
- Bandwidth : 53 MHz
- Output impedance: 529 KOhm
- Power Consumption: 1.5 mW
- Slew rate: 24 V/us
- Distortion SFDR @1 MHz
- (Vin 200m Vp-p): -63 dB
- Area: 119 um x 65 um
- Process : 22FDX
- Metal Option : 19
Block Diagram

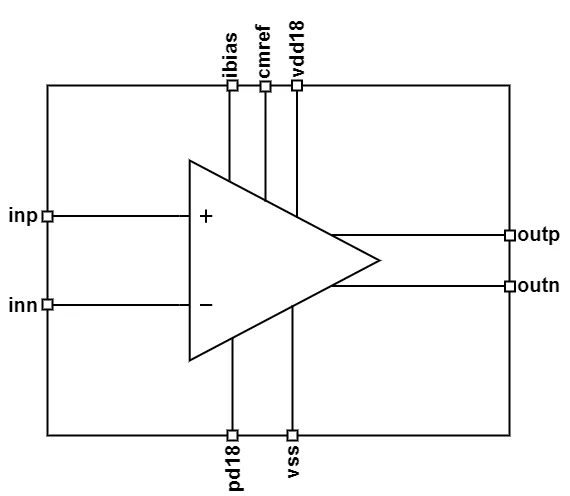

WEAOPDHB18PI18SFP11M22G block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEAOPDHB18PI18SFP11M22G
Vendor
Weasic Microelectronics
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
