Vendor: Truechip Solutions Category: HDMI

HDMI 2.0 Verification IP

The HDMI Verification IP provides an effective & efficient way to verify the components interfacing with HDMI interface of an ASI…

Contact Provider Request Datasheet

Overview

The HDMI Verification IP provides an effective & efficient way to verify the components interfacing with HDMI interface of an ASIC/FPGA or SoC. The HDMI VIP is fully compliant with HDMI 2.0 Specification. This VIP is a light weight VIP with an easy plug-and-play interface so that there is no hit on the design time and the simulation time.

Key features

  • Provides HDMI fully compliant to HDMI 2.0 Specification
  • Supports High-bandwidth Digital Content Protection System HDCP v2.2
  • Support for HDCP2.2 with full authentication and key exchange
  • Supports System Renewability Message (SRM) and revocation
  • Encryption/Decryption of Video, Audio, and Data Island Packets
  • Support for HDCP2.2 bypass the authentication. HDCP v1.4
  • Supports three TDMS data channels and one clock channel
  • Supports (VESA)DDC display data channel
  • Supports E-EDID (VESA)
  • Supports SCDC (HDMI Status and Control Data Channel)
  • Supports all type of video format, color depth, and pixel formats
  • Supports Multi-view, 10K/8K/4K/2K, and all 3D video
  • Supports all new packets 3D Audio Sample Packet, One bit 3D Audio Sample Packet, Audio Metadata Packet
  • Multi Stream Audio Sample Packet. One bit Multi Stream Audio Sample Packet(Upto 32 Channels)
  • Supports HDMI CTS 2.0 compliance checks
  • Supports following Pixel encoding
    • YCbCr 4:2:0
    • YCbCr 4:4:4
    • YCbCr 4:2:2
    • RGB
  • Supports following operating modes -
    • Control period
    • Video Period
    • Data Island Period
    • Scrambled control period
    • Unscrambled control period
  • Supports CEA-861-G spec Video ID codes and HDMI VIC
  • Supports all types of packet formats
  • Supports TMDS and TERC4 coding
  • Supports scrambling and descrambling for all pixel rate
  • Monitors are able to handle and report the following types of error
    • Invalid Control character
    • Sync error
    • Ecc errors
    • Encoding error
    • Invalid Data character
  • Supports dynamically configurable modes
  • Strong Protocol Monitor with real-time exhaustive programmable checks
  • Supports Dynamic as well as Static Error Injection scenarios
  • On the fly protocol checking using protocol check functions, static and dynamic assertion
  • Built-in Coverage analysis
  • Provides a comprehensive user API (callbacks) in Transmitter and Receiver
  • Graphical analyzer to show transactions for easy debugging

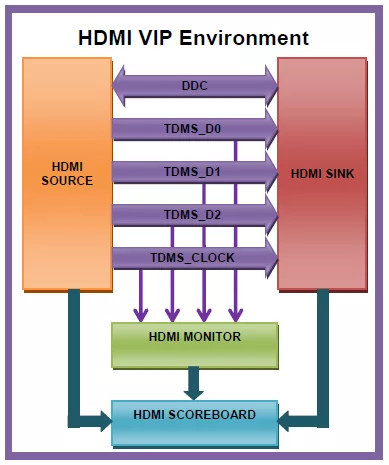

Block Diagram

HDMI 2.1/2.0/1.4 block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure highest levels of quality
  • Availability of various Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity example for all the components
  • Consistency of interface, installation, operation and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • HDMI Source
  • HDMI Sink
  • HDMI Monitor and Scoreboard
  • Test-Bench Configuration
  • Test Suite (Available in Source code)
    • HDMI 2.0 Compliance test
    • Basic Protocol Tests
    • Directed & Random Tests
    • Assertion and Cover Point Tests

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
HDMI 2.1/2.0/1.4
Vendor
Truechip Solutions

Provider

Truechip Solutions
HQ: USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC. Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team. Truechip was established in 2008 with a Mission to:
  • To create world class Verification IP Solutions
  • To provide expert consultancy to ASIC & SoC Design companies
  • To design SOCs from Architecture to Working Silicon
Our Vision is to:
  • To be the leading provider of Semiconductor IP Solutions
  • To be a one-stop-shop for Design and Verification
Our Guiding Principles are:
  • Customer Success
  • Commitment to Quality
    • Quality of Products
    • Quality of Engineers
  • Best in class Customer Support
  • Ethics and Integrity
We at Truechip leverage the extensive domain knowledge and expertise from current associations to provide complete set of design and verification solutions to our customers.
