Vendor: RFIC Solutions, Inc. Category: RF Front End

Front End Module operating from 2 – 7 GHz and can be used in S / C band for Wi-Fi 6 & SATCOM applications.

RFFEM02C Front End Module operates from 2 – 7 GHz and can be used in S / C for Wi-Fi 6 & SATCOM applications.

Contact Provider Request Datasheet

Overview

RFFEM02C Front End Module operates from 2 – 7 GHz and can be used in S / C for Wi-Fi 6 & SATCOM applications. The input and output are matched to 50 ohms with on-chip DC blocking capacitors. The device is specifically designed to use in point-to-point radios for 5G RF Transceiver & SATCOM. The technology used to design front-end module is 0.1um GaAs pHEMT process. Results are shown in datasheet with all parasitics & coupling effects at desired frequency.

Key features

  • RF Frequency: 2-7 GHz
  • TX Gain of 28.3 dB
  • RX Gain of 13.9 dB
  • TX Output P1dB of 24.9 dBm
  • RX Output P1dB of 19.2 dBm
  • Noise Figure of 3 dB
  • Output Saturated Power: 25.2 dBm
  • Bias: VDD=4V, VGG= - 0.6V, ID= 213.8mA
  • Die size: 1.5 mm x 2.5 mm

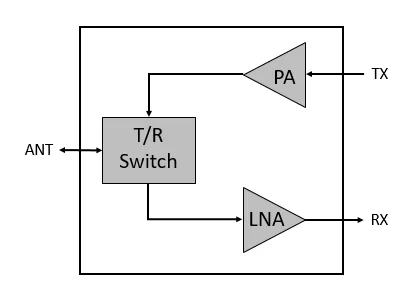

Block Diagram

RFFEM02C block diagram

Benefits

  • High power and gain
  • Flat gain over band
  • Low noise figure
  • Low cost
  • Porting: IP can be ported to 65nm Si / CMOS node

Applications

  • Wi-Fi 6 Application
  • Satellite Communication
  • Residential Gateways
  • IOT

What’s Included?

  • Schematic and Netlist
  • Abstract Model (.lib file)
  • Layout View (Optional)
  • Behavioral Model (Circuit & EM Simulation).
  • Extracted View (Optional)
  • GDSII
  • DRC, LVS, Antenna report
  • Test bench with saved configuration (Optional)
  • Documentation

Specifications

Identity

Part Number
RFFEM02C
Vendor
RFIC Solutions, Inc.
Type
Silicon IP

Provider

RFIC Solutions, Inc.
HQ: United States
RFIC Solutions, Inc. is a fabless semiconductor company focused exclusively on wireless Solutions. RFIC Solutions Inc. offer RFIC, Analog, Digital & Mixed signal IC design services. RF Modules/Board design Services & FPGA design & development services are also provided. RFIC Solutions designs highly integrated system on chip (SOC) and system on a package (SOP); custom ICs, MIC for any wireless systems including cellular, Wi-Fi, WLAN, WiMax and UWB systems. We have designed more than 600 RFICs covering frequency range from 0.01 to 100 GHz. We have expertise in designing LNA, PA, VCO, PLL, complete Transceiver IC, ADC, Mixers, SPDT/DPDT switches at high frequency, 6Bit Attenuator, Complex Band Pass Filter, Op-Amp, PGA, VGA, Prescaler for applications ranging from DC to 40 GHz. These designs are available on SiGe BiCMOS, Si CMOS InGaP, RFCMOS, GaAs pHEMT, technologies provided by our foundry partners Tower Jazz semiconductor, GCS, TSMC, Triquint, Globalfoundries, IBM, Win semiconductors.
