Vendor: Truechip Solutions Category: Ethernet

Ethernet 400G, 200G Verification IP

The 400G/200G Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet i…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The 400G/200G Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The 400G/200G Ethernet VIP is fully compliant with IEEE standard 802.3-2018 specification. This VIP is lightweight with an easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Provides Ethernet 200G according to IEEE 802.3-2018 specification
    • Supports 200GMII
    • Supports PCS with Reed Solomon Encoding
    • Supports GAUI-n interface
    • Supports AN
    • Supports DR4, FR4, LR4
  • Provides Ethernet 400G according to IEEE 802.3-2018 specification
    • Supports 400GMII
    • Supports PCS with Reed Solomon Encoding
    • Supports GAUI-n interface
    • Supports SR16, DR4, FR8, LR8
  • Provides EEE capability
  • Supports all possible widths for PCS to serdes interface
  • Supports test pattern generation and checking
  • Supports clock data recovery(CDR)
  • Support for MMD registers
  • MDIO interface supported
  • Callback support in layers to provide user control
  • Provides static as well as dynamic error injection capability
  • Built-in coverage analysis
  • Graphical analyzer to show transactions for easy debugging

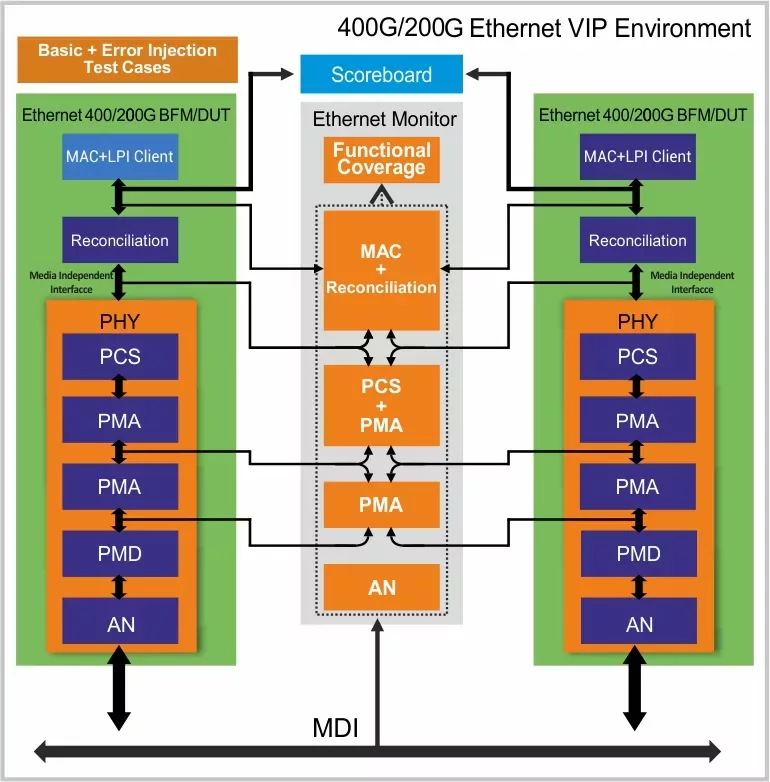

Block Diagram

400G/200G block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity example for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • Ethernet 400G/200G BFM's for
    • MAC layer
    • Reconciliation layer
    • AN Layer
    • PCS Layer
    • PMA layer
    • PMD layer
  • Ethernet 400G/200G layered monitors and scoreboard, test
  • Test environment and Test Suite -
    • Basic protocol directed tests
    • Error Injection tests
    • Assertion and cover-point tests
    • User Test Suite
  • Integration guide, user manual, and release notes
  • GUI analyzer to view simulation packet flow

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
400G/200G
Vendor
Truechip Solutions
Type
Verification IP

Provider

Truechip Solutions
HQ: USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC. Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team. Truechip was established in 2008 with a Mission to:
  • To create world class Verification IP Solutions
  • To provide expert consultancy to ASIC & SoC Design companies
  • To design SOCs from Architecture to Working Silicon
Our Vision is to:
  • To be the leading provider of Semiconductor IP Solutions
  • To be a one-stop-shop for Design and Verification
Our Guiding Principles are:
  • Customer Success
  • Commitment to Quality
    • Quality of Products
    • Quality of Engineers
  • Best in class Customer Support
  • Ethics and Integrity
We at Truechip leverage the extensive domain knowledge and expertise from current associations to provide complete set of design and verification solutions to our customers.
