Vendor: Zero ASIC Category: eFPGA

eFPGA on GlobalFoundries GF12LP

All Platypus eFPGA hardened IP cores are backed up by an open architecture guarantee.

Contact Provider Request Datasheet
GlobalFoundries 12nm LP View all specifications

Overview

All Platypus eFPGA hardened IP cores are backed up by an open architecture guarantee. Complete machine readable descriptions of standard architectures can be found in the Logiklib open source repository.

Parametrized soft RTL logic wrap the hardened IP core to handle reset, boot-up, security, and bitstream loading. Bitstream programming is done via a standardize memory mapped register interfaces (APB, AXI-Lite, or UMI) selectable by the user during design integration.

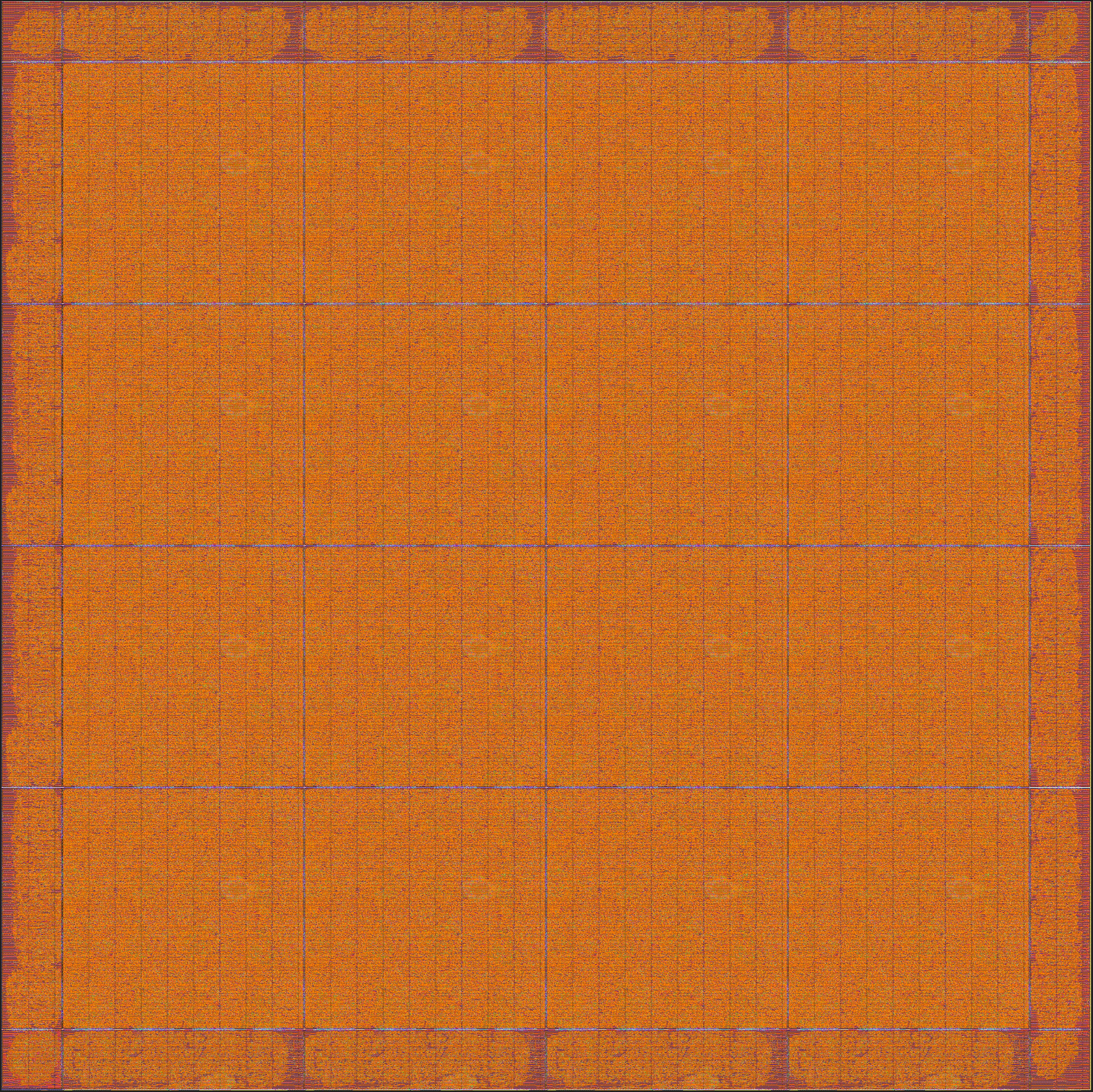

The Z1000 standard eFPGA architecture has been ported to the GlobalFoundries GF12LP process. The picture below shows the full layout (GDS) of an integration ready Z1000 eFPGA core.

Process LUTs Regs I/O DSPs BRAM Width Height
GF12LP 2,048 2,048 1,024 0 0 1036.8um 1037.2um

Block Diagram

Z1000-GF12LP block diagram

Benefits

  • 100% open and standardized FPGA architectures
  • 100% open source FPGA bitstream formats
  • 100% open source FPGA development tools

Applications

  • FPGA/CPLD/ASIC obsolescence
  • hardware security
  • I/O peripherals
  • interface bridges
  • motor control
  • signal muxing
  • power management
  • glue logic



Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 12nm LP —

Specifications

Identity

Part Number
Z1000-GF12LP
Vendor
Zero ASIC
Type
Silicon IP

Provider

Zero ASIC
HQ: USA
Zero ASIC is a semiconductor startup based in Cambridge, Massachusetts. The company mission is to democratize access to silicon.
