Vendor: RFIC Solutions, Inc. Category: RF Front End

Downconverter IR SSB Mixer used in receives

RFDN02C (DNC Mixer) is IR SSB Mixer used in receive application.

Contact Provider Request Datasheet

Overview

RFDN02C (DNC Mixer) is IR SSB Mixer used in receive application. The process used to design DNC Mixer is 0.1um GaAs pHEMT. This Mixer employs two resistive FET switches to mix LO and RF. In a resistive FET mixer, where the LO of the mixer is applied to the gate. RF is applied to the drain and, consequently, IF is filtered from the drain. No drain dcbias voltage is applied to the transistor. Gate bias can help us achieve better linearity, minimum conversion loss with less LO power over the wideband down conversion operation. Results are shown in datasheet with all parasitics & coupling effects at desired frequency.

Key features

  • RF Frequency: 24-30 GHz
  • IF Frequency: 5-6 GHz
  • LO Frequency: 24-36 GHz
  • Conversion Gain of 9.7 dB
  • IIP3 of +20 dBm with min LO power
  • Image Rejection of 20 dBc
  • Die size: 1.85 mm x 2.62 mm

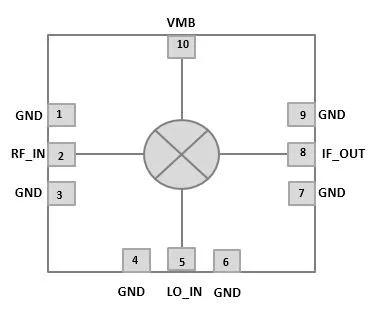

Block Diagram

RFDN02C block diagram

Benefits

  • Better linearity
  • Minimum conversion loss
  • Less LO power over wideband
  • Porting: IP can be ported to 65nm Si / CMOS node

Applications

  • 5G mobile system
  • Satellite Communication
  • Point to point communication system
  • Radar

What’s Included?

  • Schematic and Netlist
  • Abstract Model (.lib file)
  • Layout View (Optional)
  • Behavioral Model (Circuit & EM Simulation)
  • Extracted View (Optional)
  • GDSII
  • DRC, LVS, Antenna report
  • Test bench with saved configuration (Optional)
  • Documentation

Specifications

Identity

Part Number
RFDN02C
Vendor
RFIC Solutions, Inc.
Type
Silicon IP

Provider

RFIC Solutions, Inc.
HQ: United States
RFIC Solutions, Inc. is a fabless semiconductor company focused exclusively on wireless Solutions. RFIC Solutions Inc. offer RFIC, Analog, Digital & Mixed signal IC design services. RF Modules/Board design Services & FPGA design & development services are also provided. RFIC Solutions designs highly integrated system on chip (SOC) and system on a package (SOP); custom ICs, MIC for any wireless systems including cellular, Wi-Fi, WLAN, WiMax and UWB systems. We have designed more than 600 RFICs covering frequency range from 0.01 to 100 GHz. We have expertise in designing LNA, PA, VCO, PLL, complete Transceiver IC, ADC, Mixers, SPDT/DPDT switches at high frequency, 6Bit Attenuator, Complex Band Pass Filter, Op-Amp, PGA, VGA, Prescaler for applications ranging from DC to 40 GHz. These designs are available on SiGe BiCMOS, Si CMOS InGaP, RFCMOS, GaAs pHEMT, technologies provided by our foundry partners Tower Jazz semiconductor, GCS, TSMC, Triquint, Globalfoundries, IBM, Win semiconductors.
