Vendor: RFIC Solutions, Inc. Category: RF Transceiver

DNC IR SSB Mixer used in transceiver applications

RFDN03C (DNC Mixer) is IR SSB Mixer used in transceiver application.

Contact Provider Request Datasheet

Overview

RFDN03C (DNC Mixer) is IR SSB Mixer used in transceiver application. The process used to design DNC Mixer is 0.1um GaAs pHEMT. This Mixer employs two resistive FET switches to mix LO and RF. In a resistive FET mixer, where the LO of the mixer is applied to the gate. RF is applied to the drain and consequently IF is filtered from the drain. No drain dc-bias voltage is applied to the transistor. Gate bias can help us achieve better linearity, minimum conversion loss with less LO power over the wideband down conversion operation. All results shown in datasheet with considering of parasitics and coupling effects in layout.

Key features

  • RF Frequency: 37-40 GHz
  • IF Frequency: 5-6 GHz
  • LO Frequency: 42-46 GHz
  • Conversion loss of 13.3 dB
  • IIP3 of 15 dBm with min LO power
  • Image Rejection of 19.9 dBc
  • Die size: 2.75 mm x 2.9 mm
  • This IP is similar in performance with MACOM's MAUC-011009

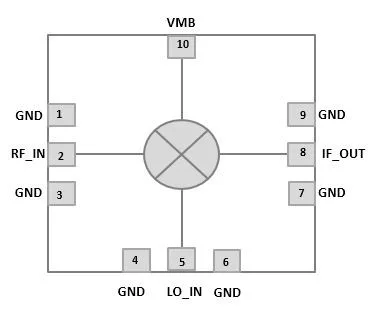

Block Diagram

RFDN03C block diagram

Benefits

  • Minimum conversion loss
  • Good fundamental suppression
  • High linearity
  • Less LO power
  • Low cost
  • Porting: IP can be ported to 65nm Si / CMOS node

Applications

  • Satellite Communication
  • Electronic Warfare (EW)
  • Point to point communication system
  • RADAR

What’s Included?

  • Schematic and Netlist
  • Abstract Model (.lib file)
  • Layout View (Optional)
  • Behavioral model (Circuit & EM simulation)
  • Extracted View (Optional)
  • GDSII
  • DRC, LVS, Antenna report
  • Test bench with saved configuration (Optional)
  • Documentation

Specifications

Identity

Part Number
RFDN03C
Vendor
RFIC Solutions, Inc.

Provider

RFIC Solutions, Inc.
HQ: United States
RFIC Solutions, Inc. is a fabless semiconductor company focused exclusively on wireless Solutions. RFIC Solutions Inc. offer RFIC, Analog, Digital & Mixed signal IC design services. RF Modules/Board design Services & FPGA design & development services are also provided. RFIC Solutions designs highly integrated system on chip (SOC) and system on a package (SOP); custom ICs, MIC for any wireless systems including cellular, Wi-Fi, WLAN, WiMax and UWB systems. We have designed more than 600 RFICs covering frequency range from 0.01 to 100 GHz. We have expertise in designing LNA, PA, VCO, PLL, complete Transceiver IC, ADC, Mixers, SPDT/DPDT switches at high frequency, 6Bit Attenuator, Complex Band Pass Filter, Op-Amp, PGA, VGA, Prescaler for applications ranging from DC to 40 GHz. These designs are available on SiGe BiCMOS, Si CMOS InGaP, RFCMOS, GaAs pHEMT, technologies provided by our foundry partners Tower Jazz semiconductor, GCS, TSMC, Triquint, Globalfoundries, IBM, Win semiconductors.
