QOI Image Decompressor IP Core

This core implements the QOI lossless image compression algorithm decompressing QOI header-less files and producing RGB 24 bits p…

Contact Provider Request Datasheet

Overview

This core implements the QOI lossless image compression algorithm decompressing QOI header-less files and producing RGB 24 bits pixels. Simple, fully synchronous design with low gate count.

OL_QOID is a fast, low complexity implementation of the compression algorithm that decompresses one 24 bits RGB pixel per clock cycle.

The QOI Lossless Image Compression Algorithm

QOI stands for Quite OK Image Format and it is a fast, simple lossless image compression algorithm.

As it can be seen in these benchmarks, the performance of the algorithm is usually somewhere in between two well known image compression libraries (like libpng and stb) but at a much lower computational cost.

QOI uses a combination of some well known image compression techniques and innovative ideas.

Pixels are compressed as:

  •   runs of identical pixels
  •   an index to a 64 pixel cache of previously encountered pixels
  •   a difference to the previous pixel
  •   a full RGB pixel

The QOI algorithm is an excellent compromise between compression performance and low algorithmic complexity.

Key features

  • Implemented according to the QOI image format.
  • Decompresses one 24 bits pixel per clock cycle.
  • High throughput : up to 800 Mpixles/s in high end, 4K@30 in low end FPGAs.
  • Optional header processing available.
  • Fully synchronous design.
  • Available as fully functional and synthesizable VHDL or Verilog soft-core.
  • Test benches provided.

Block Diagram

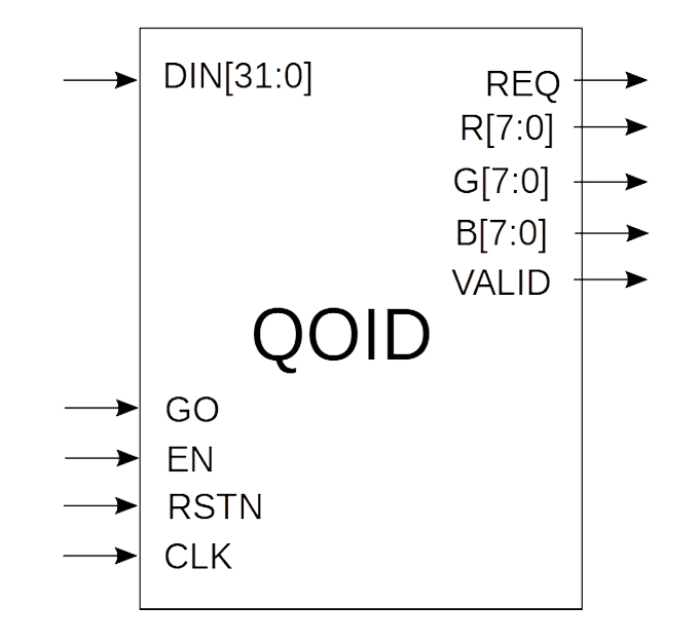

OL_QOID block diagram

Applications

  • Bandwidth and storage reduction.
  • Lossless compressed frame store.
  • Space imaging applications.
  • SoC to SoC image transmission.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
OL_QOID
Vendor
Ocean Logic Pty Ltd
Type
Silicon IP

Provider

Ocean Logic Pty Ltd
HQ: Australia
Ocean Logic Pty Ltd is a small company formed in 1996 to provide consultancy services in the area of digital design. Operations have been subsequently extended to the design of IP cores. The company has now a well established and successful IP core development program. Some of the cores available are outlined in the products section. Our soft cores have been shipped to many customers and have been included in current products. The know-how of the company includes direct experience of ASIC and FPGA design with the most modern tools as well as hardware implementation of complex algorithms from computer graphics to telecommunications.
