Complete USB Type-C Power Delivery IP

USB Power Delivery is the new standard for powering consumer electronic devices through USB Type-C cabling.

Contact Provider Request Datasheet

Overview

USB Power Delivery is the new standard for powering consumer electronic devices through USB Type-C cabling. Since the technology drives up to 100 Watts at 20V, many more devices, such as external disk drives, Notebooks, and Tablets can now be powered through USB, without other power connections.

Obsidian silicon proven USB Power Delivery IP includes:

  • Mixed signal Analog Front End Macros for 65n, 130n, 150nm, and 180n technologies.
  • RTL code from AFE to I2C compatible register set.
  • Stand alone C code for Protocol, Device Policy Manager, and System Policy Manager.
  • IP demonstration & development board, with compliance reports.
  • Full chip integration of USB Type-C, and associated software.

With first USB Power Delivery silicon demonstrated in November 2011, Obsidian Technology offers the industries first, and most complete set of USB Power Delivery IP. This includes, transceiver chip, protocol layer, and device policy technology. In addition, demonstration, and development boards are available for product evaluation and customization.

We provide either source or object level Power Delivery IP. For source IP, we provide much more than the conventional “black box” IP model. Rather, an option to own and customize the technology.

Key features

  • USB PD 3.1 compliant.
  • Ultra low power wake function.
  • 8 bit register interface for a low speed processor, or optional I2C interface.
  • Integrated Chapter 6 protocol reduces required MPU response time to 10mS.
  • K code recognition/coding, preamble, CRC, etc load from processor.
  • Supports PPS and EPR.
  • VCONN 35 or 200mA foldback and over temperature protected driver switches.
  • 3V or 5V VCONN options.
  • Supports UFP, DFP, and dual role.
  • Supports 1.5A & 3A current modes.
  • Single 12MHz clock + 32KHz low power clock.
  • Low power: normally operates on 32KHz clock.
  • Compliance tested port IP.
  • Low cost CMOS process technology.
  • <0.7mm2 die area at 180nm.
  • Optional support for EPR to 48V.
  • Available as IP for integration or as complete chip.
  • FPGA based Demo/development board available.
  • Turnkey integration service available.

Block Diagram

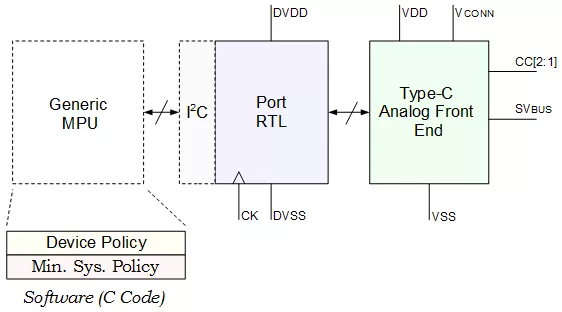

OTI9108 block diagram

Benefits

  • Very low power - 32KHz powered down operation.
  • High maturity - Compliance tested and in volume production with several major OEM's.
  • All configurations.
  • Low risk - compliance results available for review.
  • Supports all specification optional features.
  • Lowest price - Obsidian is never knowingly undersold.
  •

Applications

  • Power supply
  • Bus powered devices
  • Automotive

What’s Included?

  • PHY: GDS, verilog model, design review.
  • RTL: with Back to back port simulation harness.
  • C source code for port policy engine and device policy manager.
  • C source code for Windows demo control application.
  • Data sheet.
  • Compliance test results from demo board.
  • Pre sale on-line source walk-through.
  • Demo Board: with installed software, and power supplies for back to back system testing, and for use in compliance testing.
  • Optional ATE vectors.
  • Optional supporting functions include on-chip oscillators, references, and slave I2C.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
OTI9108
Vendor
Obsidian Technology

Provider

Obsidian Technology
HQ: USA
About Obsidian Technology
  • Founded 1995
  • Privately owned consulting company
  • Diversified customer base
  • Self funded
About Obsidian IP
  • Early delivery of front-end models.
  • On-site support available, including transfer of source to your design environment.
  • Available on-site design review.
  • On-site training for source licensing.
  • Option to take ip though your own quality and review processes.
  • Characterization support.
  • Fast and flexible legal. We typically accept your standard bi-directional NDA.
  • Simple plain-language contracts.
