USB 2.0 Device, Software Enumeration FIFO Interface (USB20SF)

The USB 2.0 Device, Software Enumeration FIFO interface (USB20SF) IP Core is a FIFO based USB 2.0 device core with 32-bit Avalon/…

Overview

The USB 2.0 Device, Software Enumeration FIFO interface (USB20SF) IP Core is a FIFO based USB 2.0 device core with 32-bit Avalon/AXI/AHB Lite interface and ULPI interface support.

Avalon/AXI/AHB Lite interface allows to manage the control transfer using software, provides flexibility, while FIFO interface allows to transfer the data over non-control endpoint ensuring highest throughput.

Key features

  • Device controller specific features
    • Supports LS (1.5 Mbps)*, FS (12 Mbps) and HS (480 Mbps) modes
    • Supports Control, Bulk, Interrupt and Isochronous transfers
    • Capable to support up to 31 endpoints (1 default control endpoint +15 IN/OUT endpoints)
    • Supports software configurable endpoints
    • Allows you to configure endpoints based on your needs
    • Supports Suspend, Resume and Remote Wakeup features
    • Supports Test modes (Test J, Test K, Test SE0 NAK, Test Packet)
  • Supports UTMI + Low Pin interface (ULPI) interface
  • The core has been optimized for popular FPGA devices and its functionality has been verified on the real hardware
  • Ease of Use
    • Ready to use component
    • Software controlled CONTROL endpoint
    • Simple FIFO interface to transfer data over non-control endpoint

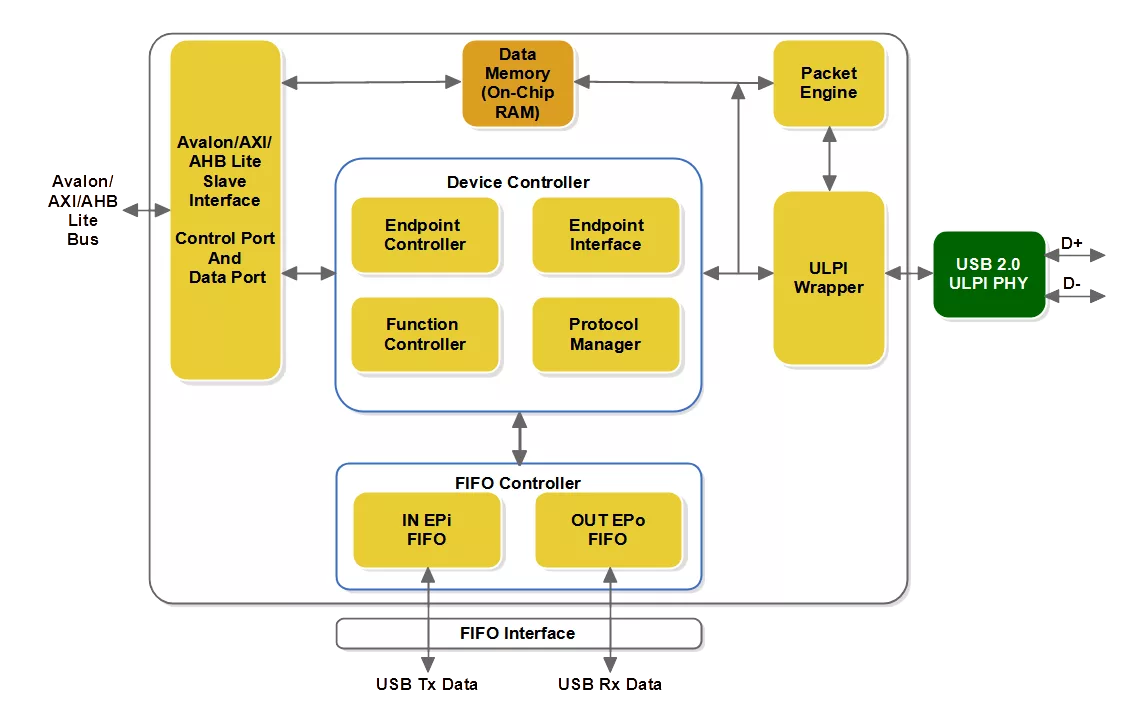

Block Diagram
