USB 20Gbps Device Controller

Leveraging the benefits of USB 10Gbps and 5Gbps device controller, USB 20Gbps is designed using the FPGA built-in transceiver.

Contact Provider Request Datasheet

Overview

Leveraging the benefits of USB 10Gbps and 5Gbps device controller, USB 20Gbps is designed using the FPGA built-in transceiver. It is a one-stop solution for all USB requirements ranging from USB 3.2 to USB 2.0. It supports SuperSpeed+ (SSP x2/x1), SuperSpeed (SS), High Speed (HS) and Full Speed (FS) communication modes. The Core architecture allows to use minimal pins from FPGA for USB 3.2 interface with better stability. It provides USB 3.2 backward compatibility with inbuilt transceiver and USB 2.0 backward compatibility using an external USB 2.0 ULPI PHY.

It has been designed to provide simplicity and flexibility along with highest throughput i.e. >16Gbps. Avalon interface allows to manage the control transfer using software, provides flexibility, while FIFO interface allows to transfer the data over non-control endpoint ensuring highest throughput.

FPGA Supported:

FPGA  Supported Device Family
 Altera

 Cyclone 10, Arria 10, Stratix 10, Agilex 7 (coming soon)

Key features

  • USB 3.2 Specific Features
    • Supports USB 20Gbps, USB 10Gbps and USB 5Gbps
    • Uses Transceiver as a PHY layer and thus eliminates need for external PHY for USB 3.2
  • USB 2.0 Specific Features
    • Supports High Speed (HS) and Full Speed (FS) modes.
    • Provides ULPI interface to interact with external USB 2.0 PHY
  • Ease of Use
    • Ready to use component
    • Simple FIFO interface to transfer data over non-control endpoint
  • Flexibility
    • Capable to support up to 31 endpoints (1 default control endpoint, 15 IN endpoints and 15 OUT endpoints).
    • Allows to select number of buffers per endpoint based on the requirement

Block Diagram

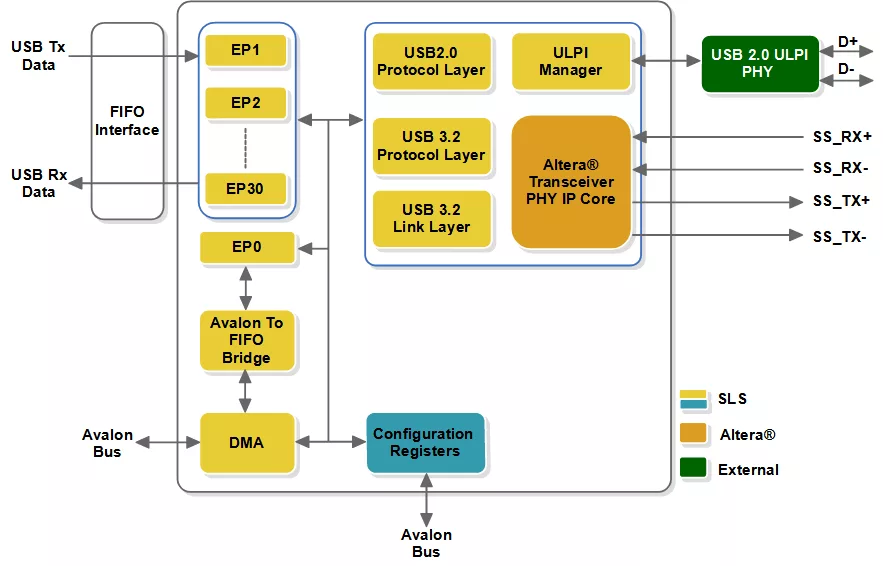

IPRUSB3SFP320 block diagram

Applications

  • Defence
  • Video Conferencing
  • Storage Devices
  • Data Centers
  • Medical

Video

SLS USB 20Gbps Device Controller IP Core - UVC Example on Altera® Cyclone® 10 GX FPGA
