Vendor: T2M GmbH Category: CPU

Centralised Real Time Processor IP Core

We provide many configurations for our cryptographic solutions based on the requirements of the project.

Contact Provider Request Datasheet

Overview

We provide many configurations for our cryptographic solutions based on the requirements of the project. When compared to competing designs, the CRP1s used up to 25% less logic cells throughout the testing while maintaining the same level of performance. Additionally, it achieves up to 50% better performance than competing designs when speed optimization is applied.



The CryptOne IP core's energy-efficient design makes it possible to use a very compact silicon footprint with fast computation. Numerous interfaces, such as AMBA AHB, AXI4, and APB, are available for it. System integration is simple and quick because to the highly intuitive interface. The core has optional DPA countermeasures and is immune to timed assaults. The universal and completely scalable

Key features

  • CryptOne programmed algorithms:
  • Constant time modular exponentiation
  • Constant time, parallel modular exponentiation CRT
  • Constant time ECDSA sign/verify
  • Constant time ECDH
  • Constant time elliptic curve point multiplication
  • No branch modular multiplicative inverse
  • No branch GCD
  • Constant time modular reduction Constant time multiplication Constant time division
  • Cryptographic algorithm applications:
  • ECDSA, ECDH
  • RSA key generation
  • RSA Sign/Verify/Encrypt/Decrypt Diffie-Hellman schemes
  • Miller-Rabin Primality check
  • System applications:
  • Client-server communication Sensor networks
  • SSL/TLS stacks IoT devices
  • Embedded security/ID devices
  • AMBA AHB, AXI4, APB interface ready
  • Rapid & easy development with delivered API
  • Patent pending architecture
  • Algorithms resistant against SPA and timing attacks
  • Software support:
  • OpenSSL engine
  • MbedTLS port
  • OS independent crypto library

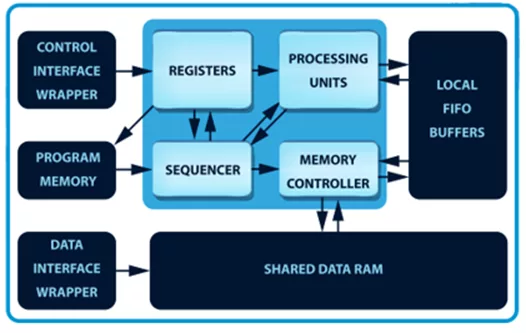

Block Diagram

CRP1A IP Core block diagram

What’s Included?

  • C software drivers with API
  • Silicon proven architecture
  • Hardware code:
  • VERILOG test bench environment
  • Technical documentation
  • Synthesis scripts
  • 12 months of free technical support included

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
CRP1A IP Core
Vendor
T2M GmbH
Type
Silicon IP

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
