AXI Interconnect Fabric

The AXI Interconnect provides the necessary infrastructure to connect as many as 8 shared AXI Slaves to as many as 4 AXI Bus Mast…

Contact Provider Request Datasheet

Overview

The AXI Interconnect provides the necessary infrastructure to connect as many as 8 shared AXI Slaves to as many as 4 AXI Bus Masters.

AXI defines 5 channels (write address, read address, write data, read data, write response) for its interface signaling between AXI Master and AXI Slave, but does not define a single way that an AXI Master must be connected to an AXI Slave. In general, an interconnect module is necessary when more than one Master and/or more than one Slave is required.

The AXI Interconnect is responsible for routing a transaction from a given Master to the appropriate Slave (decoding and switching), and ensuring that the various Master transactions do not interfere with each other

Key features

  • AMBA® AXI-4 Compatible
  • Multiple AXI Channels
  • Off the shelf core supports 4 Masters and 8 Slaves
  • Arbitration is done at each slave
  • Other configurations are available

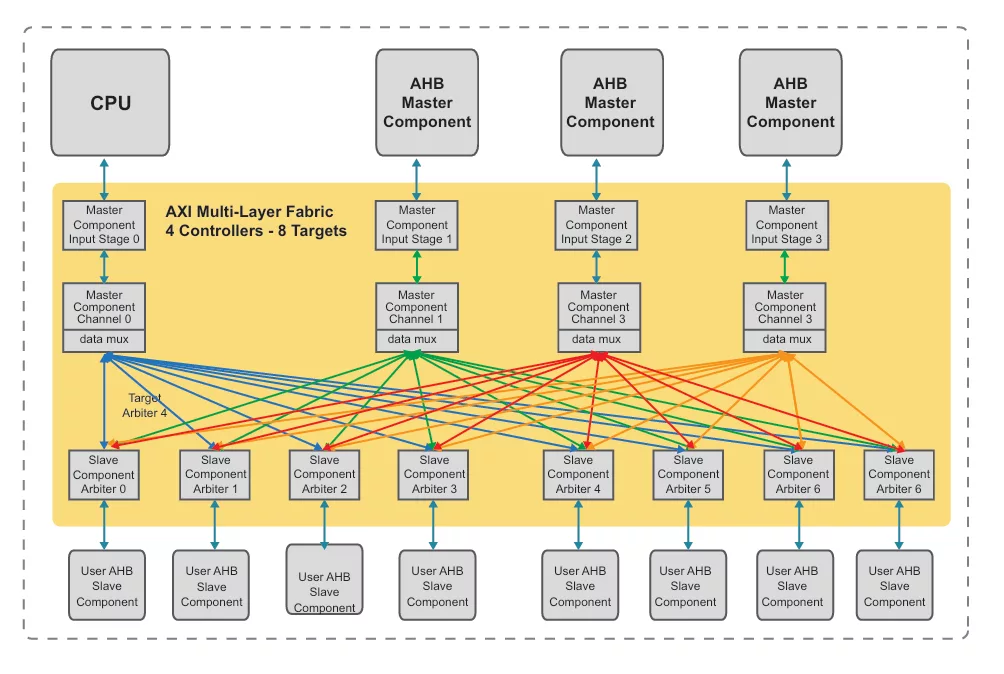

Block Diagram

AXI Interconnect Fabric block diagram

What’s Included?

  • Verilog Source
  • Complete Test Environment
  • AXI Bus Functional Model

Specifications

Identity

Part Number
AXI Interconnect Fabric
Vendor
Silvaco, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Silvaco, Inc.
HQ: United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
Contact Silvaco, Inc.
