Sensor/Display MIPI A-PHY Sink IP

The CL12912IP4000 is based on MIPI A-PHY interface specification announced in year 2020, targeting ultra-high-speed networking ap…

Contact Provider Request Datasheet
TSMC 40nm LP eFlash View all specifications

Overview

The CL12912IP4000 is based on MIPI A-PHY interface specification announced in year 2020, targeting ultra-high-speed networking applications in ADAS and autonomous drive subsystems. It supports applications that require long reach (up to 15 meters), error-free links, and high EMI immunity requirement.

PHY IP supports the SINK function of MIPI A-PHY Gear-2 stated in standard specification. It supports data rate up to 4Gbps with integrated mixed signal circuit, high performance RX equalizer, fast tracking Clock and Data Recovery, on chip optional termination resistor calibration.

Key features

  • Compliant with MIPI A-PHY specification version 1.0
  • Support Gear-2 up to 4Gbps
  • Support data bus width: 20-bit parallel interface
  • Support 2 lanes
  • Support Uplink Driver @ 100Mbps
  • Selectable input clock frequency: 25MHz
  • Maximum output clock frequency at 200MHz
  • Supports Single-ended coaxial or shielded twisted-pair (STP) cable up to 15m
  • Support A-PHY PMD layer by HARD macro
  • Support AEC-Q100 (Grade 1) for automotive applications
  • High performance Data and clock recovery.
  • Analog monitor port for test and debug
  • Embedded termination Resistor and optional calibration function
  • Supporting Link IP CD12912IP200 (PHY layer PCS, RTS and Data Link) soft macro
  • Native Protocol Adaption layer supports (Option)

Block Diagram

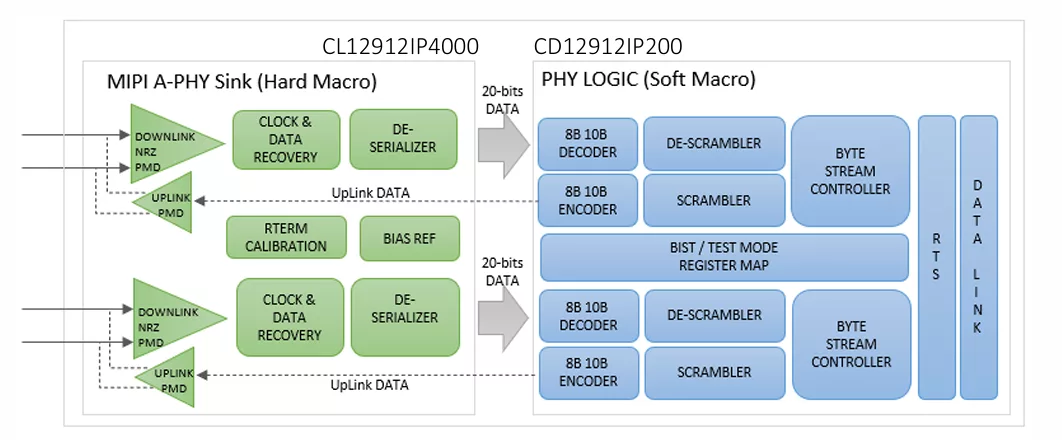

CL12912IP4000 block diagram

Benefits

  • CL12911 and CL12912 support MIPI A-PHY interface.
  • A-PHY is long-reach, serializer-deserializer (SerDes) physical layer interface for automotive applications such as advanced driver assistance systems, autonomous driving systems and other surround-sensor applications, including cameras and in-vehicle infotainment displays. A-PHY forms a family of specifications designed to provide end-to-end connectivity with safety and security built-in.
  • With a reach of up to 15 meters, MIPI A-PHY offers high-speed performance with an ultra-low packet error rate for unprecedented reliability, ultra-high immunity to electromagnetic interference effects.

Applications

  • Automotive Application
  • Advanced driver assistance systems
  • Autonomous driving systems
  • Surround-sensor applications
  • Camera
  • Display

What’s Included?

  • GDSII
  • Place-Route views (.LEF)
  • Liberty library (.lib)
  • Verilog behavior model
  • Netlist & Timing information
  • Datasheet, Packaging and Layout Guideline / PCB Guideline
  • LVS/DRC verification reports
  • Static Delay Analysis (STA) Guideline
  • Testing Guideline (Option)Testing Guideline (Option)

Silicon Options

Foundry Node Process Maturity
TSMC 40nm LP eFlash —

Specifications

Identity

Part Number
CL12912IP4000
Vendor
Curious Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Curious Corp.
HQ: Japan
