Vendor: Reflex CES Category: Single-Protocol PHY

Aurora-like 64b/66b @14Gbps for ALTERA Devices

REFLEX CES introduces a release at 14Gbps of its Aurora-like IP Core based on ALTERA FPGA enabling interoperability between XILIN…

Contact Provider Request Datasheet

Overview

REFLEX CES introduces a release at 14Gbps of its Aurora-like IP Core based on ALTERA FPGA enabling interoperability between XILINX and ALTERA FPGA.

Key features

  • Full-­Duplex operation.
  • Simplex operation.
  • Up to 14.1Gbps bit rate per lane (depends on FPGA devices).
  • Up to 16 transceiver lanes.
  • Framing interface.
  • Native flow control in immediate and completion mode.
  • User flow control.
  • 64b/66b encoding (reduce protocol overhead comparing to 8b/10b)
  • Clock compensation sequence generation.
  • Per lane polarity inversion.
  • Lane skew compensation.
  • AXI streaming interfaces.

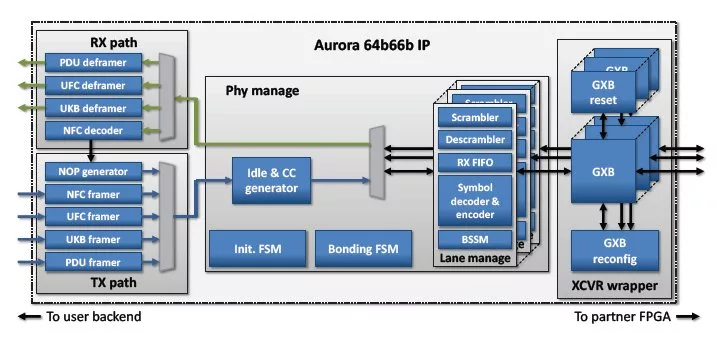

Block Diagram

14 Gbps Aurora-like IP Core block diagram

What’s Included?

  • REFLEX CES delivers a cost-­‐effective solution for each customer project based-­‐on an adapted license fee with the following deliveries:
    • VHDL source code or encrypted licenses
    • User guide
    • Reference Designs for ALTERA and XILINX development boards.

Specifications

Identity

Part Number
14 Gbps Aurora-like IP Core
Vendor
Reflex CES

Provider

Reflex CES
HQ: France
Fore more than ten years Reflex CES designs and manufactures high-speed boards and rugged systems solutions based-on high-density FPGA that significantly reduce technology risk to customers. The company specializes in Modified-Off-The-Shelf (MOTS) solutions for VPX/OpenVPX, CompactPCI, VME rugged systems, embedded systems, industrial systems, high-speed boards, FPGA boards and PCIe boards. Its expertise spans from chip-level and software-level design up to complete system-level design, manufacturing, and production of small and medium series targeting high-end customers from military/aerospace, defense, telecommunications, medical and industrial sectors.
Contact Reflex CES
