Vendor: NTLab Category: Single-Protocol PHY

500Mbps LVDS IP library

180TSMC_LVDS_10 is a library including: Transmitter LVDS driver (TX_LVDS); Receiver LVDS driver (RX_LVDS); Transceiver LVDS drive…

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

180TSMC_LVDS_10 is a library including:

  •  Transmitter LVDS driver (TX_LVDS);
  •  Receiver LVDS driver (RX_LVDS);
  •  Transceiver LVDS driver (RX_TX_LVDS);
  •  Reference current/voltage generators (RS_TOP).


RX_TX_LVDS driver has five available operation modes: transmitter, receiver, transmitter half-duplex, receiver half-duplex and shutdown.

The RS_TOP block is intended to output reference currents and voltage for RX_LVDS driver, TX_LVDS driver or TX_RX_LVDS driver.

Composing of LVDS library components allows to design a device with up to 16 pairs of data channels and 2 pairs of synchronization channels.

Key features

  • TSMC CMOS 180 nm
  • TIA/EIA-644 LVDS standards without hysteresis
  • Data transfer rate: up to 500Mbps (DDR MODE)
  • 3.3V IO voltage supply
  • 1.8V core voltage supply
  • 1.8V CMOS input/output logic control signals
  • Embedded 1.8V/3.3V level shifters

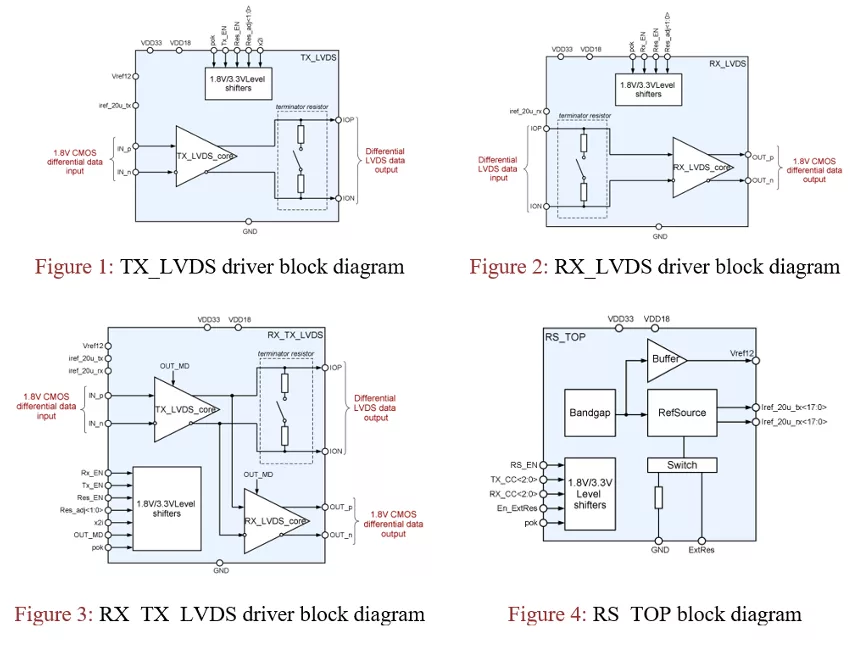

Block Diagram

180TSMC_LVDS_10 block diagram

Applications

  • Point-to-point data transmission
  • Multidrop buses
  • Clock distribution
  • Backplane receiver
  • Backplane data transmission
  • Cable data transmission

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Silicon Proven
