Vendor: Synopsys, Inc. Category: CPU

ARC Data Fusion Voice/Speech Option

IoT applications increasingly require sensing capabilities that extend beyond what traditional sensors provide.

Contact Provider Request Datasheet

Overview

IoT applications increasingly require advanced sensing capabilities that extend beyond what traditional sensors provide. Functions such as face detection, voice and gesture recognition require an efficient combination of RISC and DSP processing. The ARC® Data Fusion IP Subsystem is a complete, pre-verified, hardware and software solution optimized for a wide range of ultra-low power IoT applications. It is designed for fast and easy integration within a larger system context.

The fully configurable ARC Data Fusion IP Subsystem includes the choice of a low gate count and energy-efficient ARC EM5D, EM7D, EM9D or EM11D processor for both RISC and DSP processing, accompanied by an extensive collection of I/O functions and fast math (trigonometric) accelerators. The software libraries of the subsystem contain small-footprint drivers for all I/O, plus DSP functions supporting signal processing. It also includes an audio processing software library of common functions, including gain control, mixer and sample rate converter. Tightly coupled PDM and I2S peripherals simplify integration of external audio devices and the hardware PDM interface implementation is 6X more energy efficient than the equivalent software implementation, with minimal gate count impact. The audio library and peripherals (PDM, I2S) are part of a voice/speech licensable option. The integrated solution is optimized for “always on” data fusion combining sensor, voice, gesture and audio processing typically implemented in IoT edge devices.

Key features

  • Integrated, pre-verified hardware and software IP subsystem
  • ARC EM processors with cache and DSP extensions deliver extremely low gate count and highly efficient processing performance
  • Extensive library of software DSP functions enable sensor signal processing
  • Hardware accelerators boost performance efficiency and reduce power consumption
  • Integrated peripherals provide a wide range of SoC connectivity options for SoC/MCUs
  • Options supporting higher performance voice/speech and sensor requirements

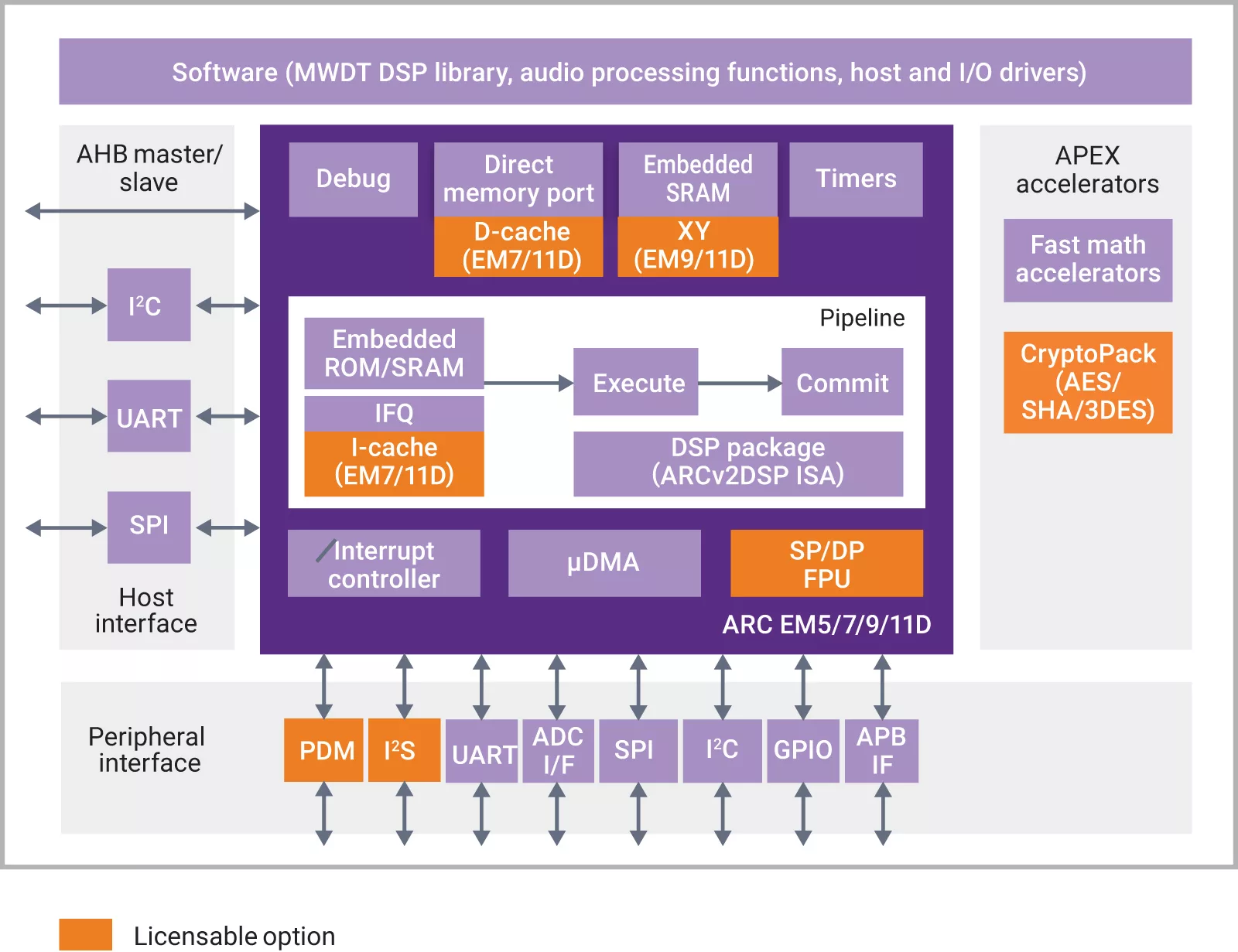

Block Diagram

dwc_data_fusion_voice_option block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
dwc_data_fusion_voice_option
Vendor
Synopsys, Inc.
Type
Silicon IP

Provider

Synopsys, Inc.
HQ: USA
Synopsys is a leading provider of high-quality, silicon-proven semiconductor IP solutions for SoC designs. The broad Synopsys IP portfolio includes logic libraries, embedded memories, analog IP, wired and wireless interface IP, security IP, embedded processors and subsystems. To accelerate IP integration, software development, and silicon bring-up, Synopsys’ IP Accelerated initiative provides architecture design expertise, pre-verified and customizable IP subsystems, hardening, and signal/power integrity analysis. Synopsys' extensive investment in IP quality, comprehensive technical support and robust IP development methodology enables designers to reduce integration risk and accelerate time-to-market.
