Vendor: Silvaco, Inc. Category: Interrupt Controller

APB Interrupt Controller

The interrupt controller monitors interrupts from all other modules within the system and issues interrupt requests to the proces…

Contact Provider Request Datasheet

Overview

The interrupt controller monitors interrupts from all other modules within the system and issues interrupt requests to the processor when necessary. The interrupt controller is scalable to support from 1 to 32 interrupt sources. It also provides enable set and enable clear mechanisms to prevent dangerous read-modify-write operations. It provides active high & active low IRQ & FIQ interrupt request outputs.


Key features

  • AMBA® APB Compatible
  • Up to 32 independent interrupt sources
  • FIQ and IRQ outputs
  • Single bit enable and clear control

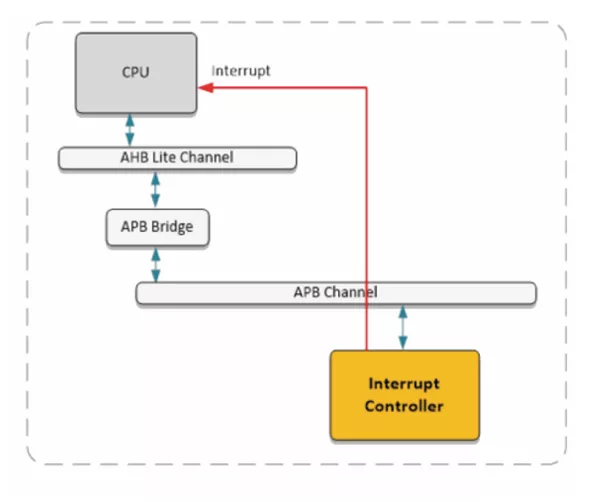

Block Diagram

APB Interrupt Controller block diagram

What’s Included?

  • Verilog Source
  • Complete Test Environment
  • APB Bus Functional Model

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
APB Interrupt Controller
Vendor
Silvaco, Inc.
Type
Silicon IP

Provider

Silvaco, Inc.
HQ: United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
Contact Silvaco, Inc.
