Vendor: SmartDV Technologies Category: Interrupt Controller

INTC IIP

Interrupt Controller interface provides full support for programmable edge triggered (rising, falling) or sensitive, compatible w…

Contact Provider Request Datasheet

Overview

Interrupt Controller interface provides full support for programmable edge triggered (rising, falling) or sensitive, compatible with Interrupt Controller Specification. Through its INTC compatibility, it provides a simple interface to a wide range of low-cost devices. INTC IIP is proven in FPGA environment. The host interface of the INTC can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

INTC IIP is supported natively in Verilog and VHDL

Key features

  • Compliant with Interrupt controller specification
  • Programmable edge triggered (rising, falling) or sensitive (high, low) trigger source
  • Configurable number of interrupt sources (up to 31 IRQ,or sensitive (high, low) trigger source one fast IRQ)
  • Selectable source for fast IRQ
  • Supports up to 31 pending interrupt while servicing a single interrupt
  • Eight levels of hardware priority
  • Selectable hardware or software interrupt source
  • All interrupt sources are maskable
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices

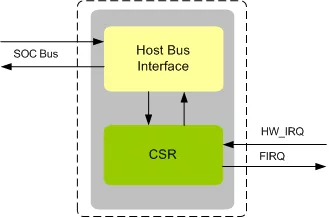

Block Diagram

INTC IIP block diagram

Benefits

  • Single site license option is provided to companies designing in a single site.
  • Multi sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.

What’s Included?

  • The INTC interface is available in Source and netlist products.
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
INTC IIP
Vendor
SmartDV Technologies
Type
Silicon IP

Provider

SmartDV Technologies
HQ: India
At SmartDV Technologies™, we believe there’s a better way to approach semiconductor intellectual property (IP) for integrated circuits. We’ve been focused exclusively on IP since 2007—so whether you’re sourcing standards-based design IP for your next SoC, ASIC, or FPGA, or seeking verification solutions (VIP) to put your chip design through its paces, you’ll find SmartDV’s IP straightforward to integrate. By combining proprietary SmartCompiler™ technology with the knowledge of hundreds of expert engineers, SmartDV can customize IP to meet your unique design objectives: quickly, economically, and reliably. Don’t allow other suppliers to force onesize-fits-all cores into your chip design. Get the IP you need, tailored to your specifications, with SmartDV: IP Your Way.
Contact SmartDV Technologies
